HB19285 Concord Auger soil sampler drill 9200 series Soil Sampling Drill
No longer available
HB19285 Concord Auger soil sampler drill 9200 series Soil Sampling Drill
$16,500 (USD)
Nevada
Description

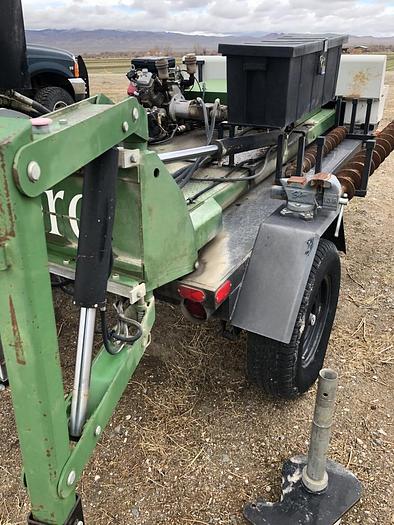

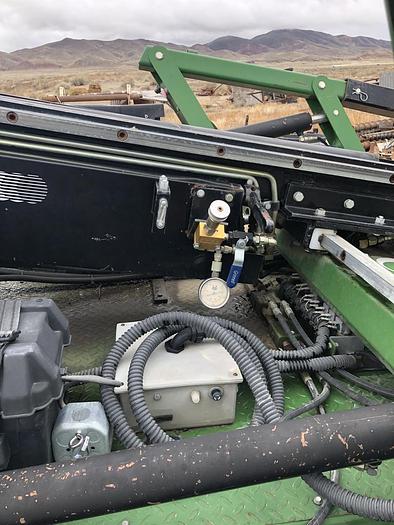

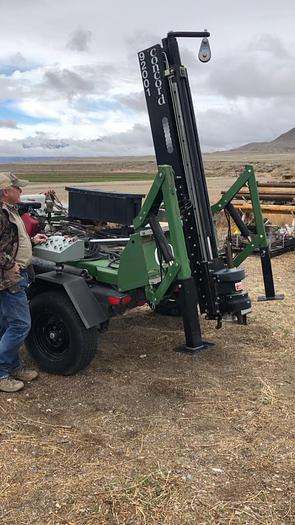

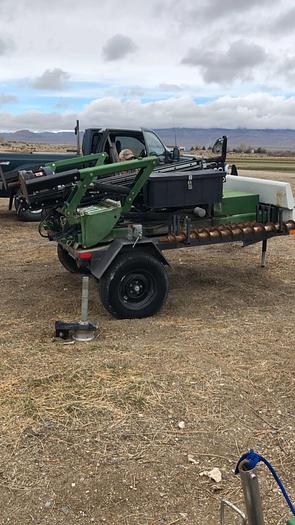

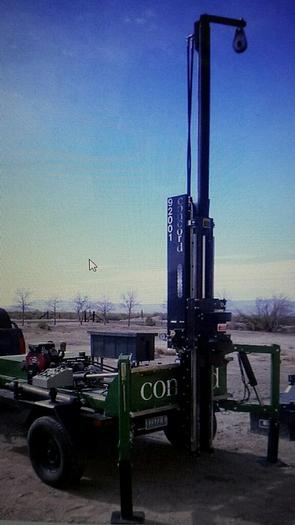

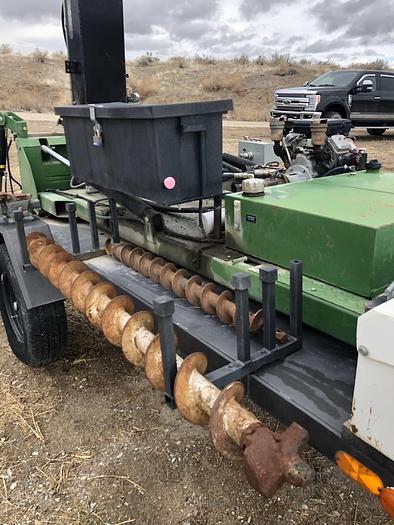

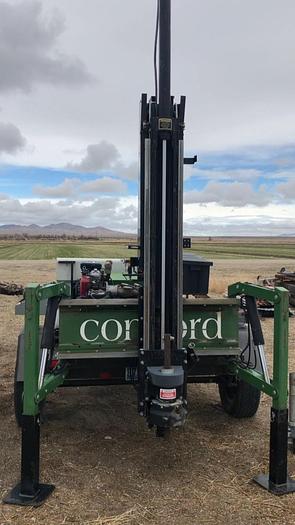

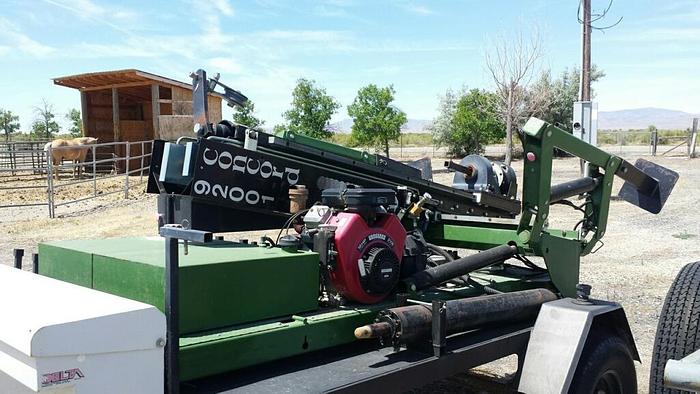

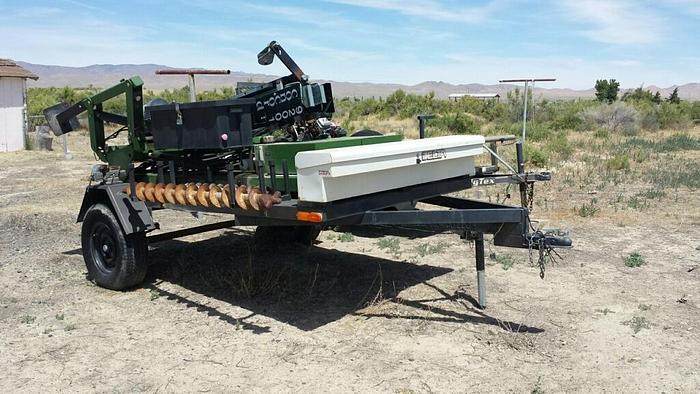

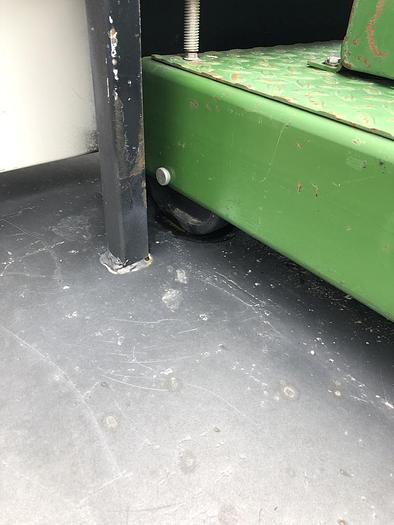

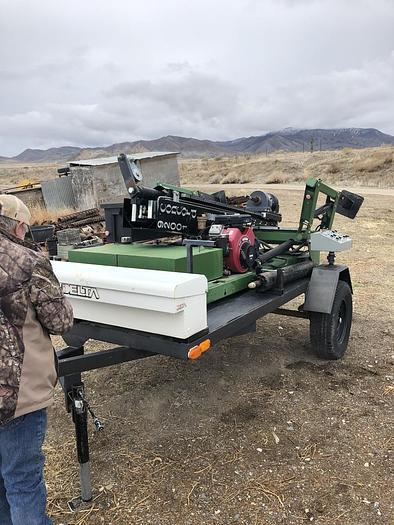

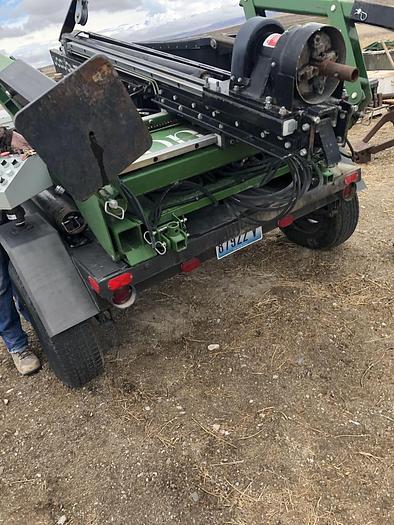

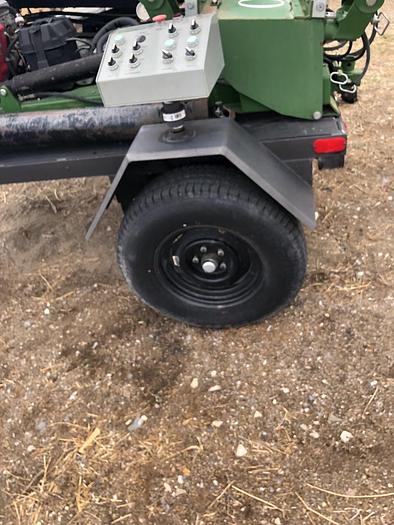

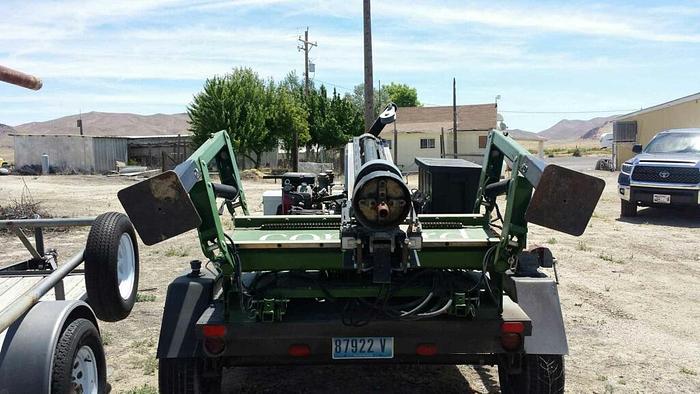

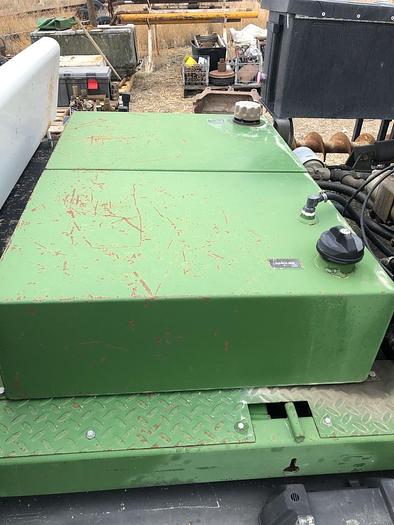

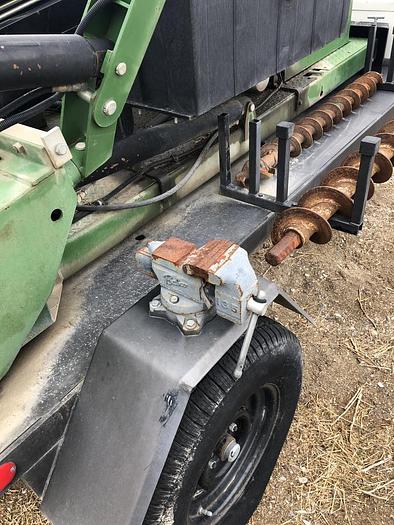

This is a Concord Soil Sampler drill mounted on a trailer for easy transport but can be moved to a pickup or any other vehicle.
700 to 14,000 downforce
14 second down cycle
11 second cycle up
this is all on a 60" cylinder

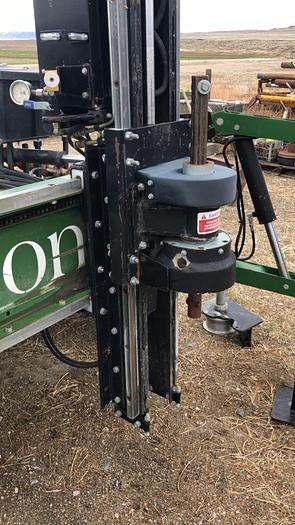

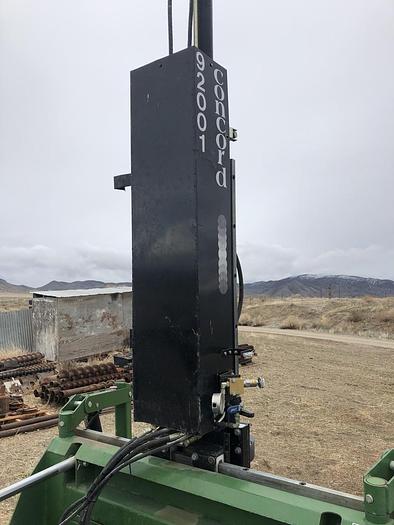

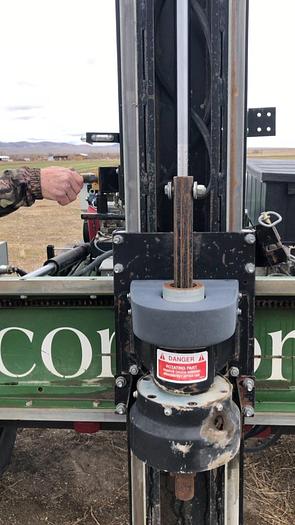

Drill Head speed is adjustable from 0 to 75 RPMs at 6,050 inch lb

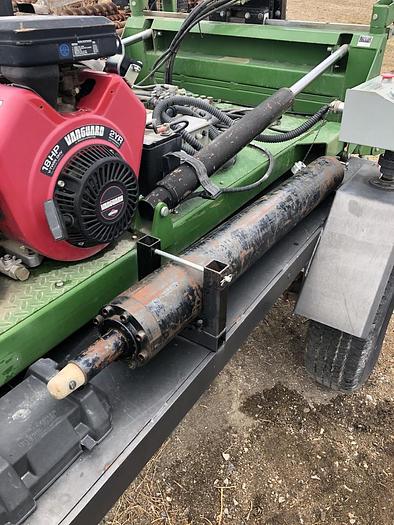

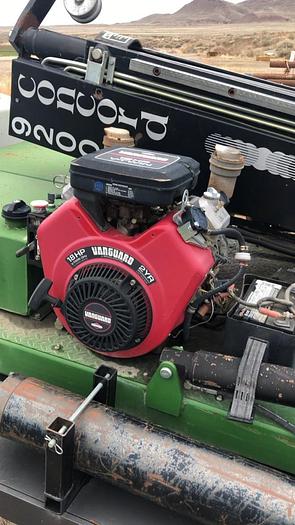

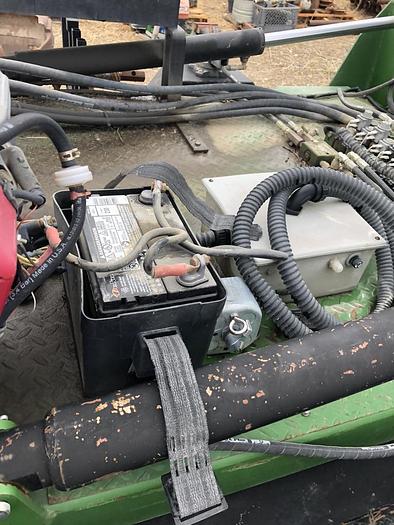

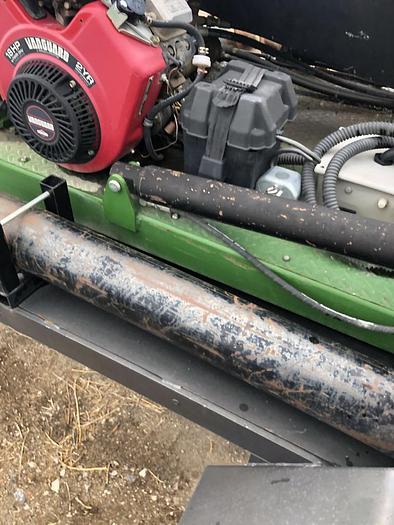

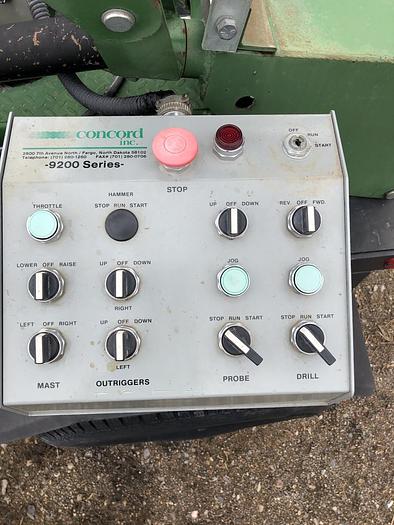

Electric Start
Made in Fargo North Dakota
Parts and items that come with this drill rig

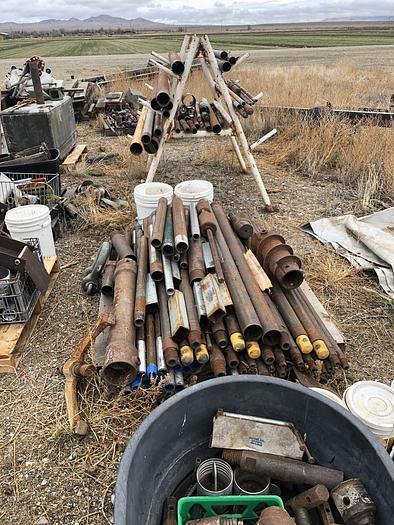

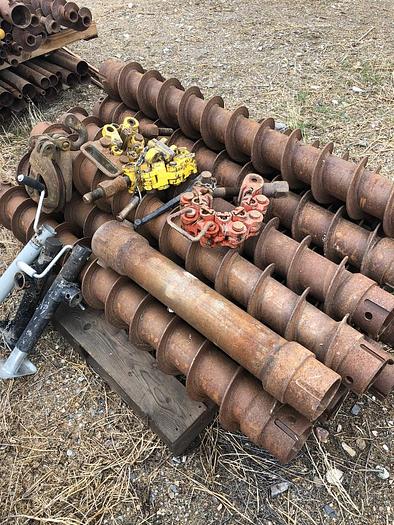

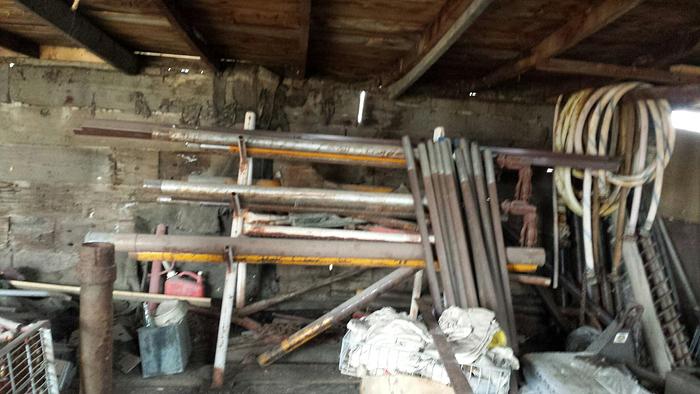

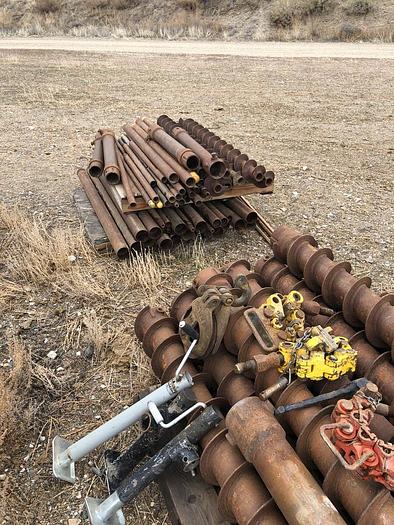

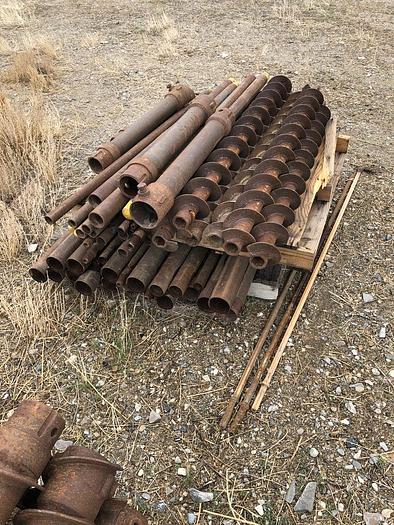

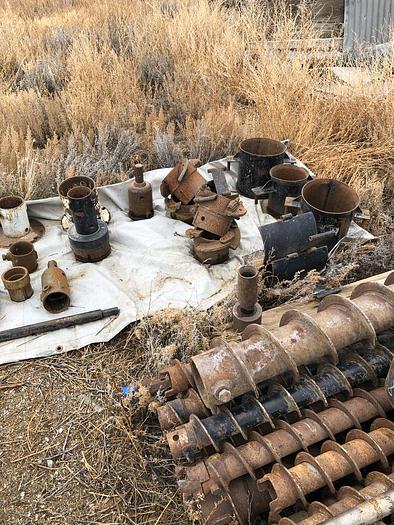

AUGER EQUIPMENT

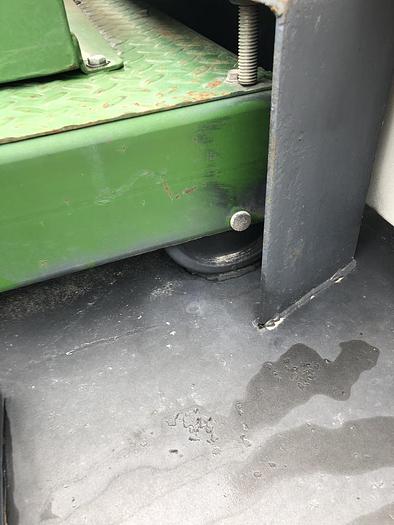

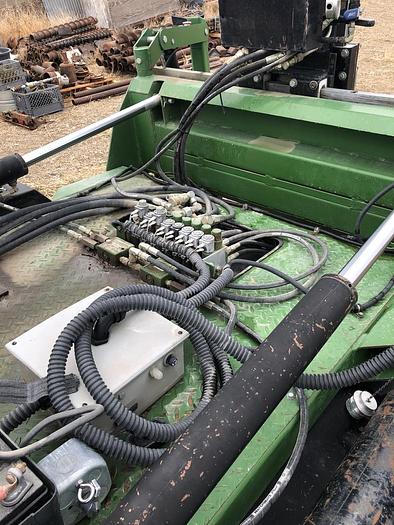

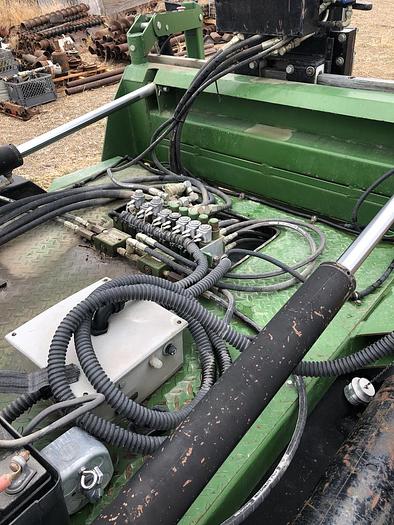

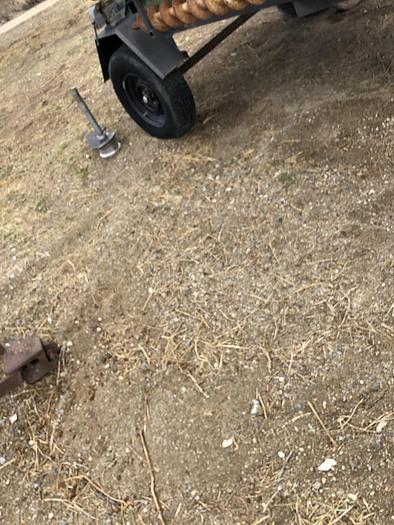

1. Concorde single axle auger drill (can be removed to place on pickup) (gas over hydraulic), 14k down force, 12k back pull, 0 to 75 rpm @ >7k inch/lbs, 140 # ASTM drop hammer. Quick conversion to various size augers. Cathead and Manilla rope. Tool boxes, hydraulic leveling jacks, cut-off switches (Emergency and Maintenance).

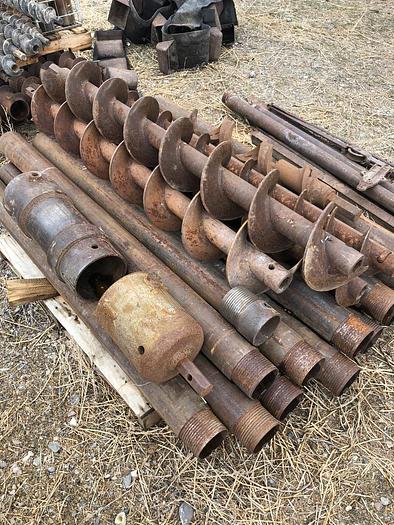

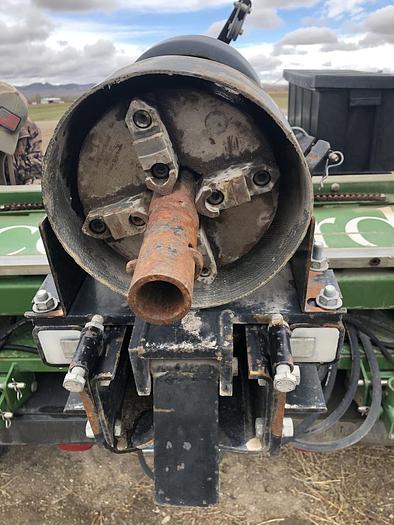

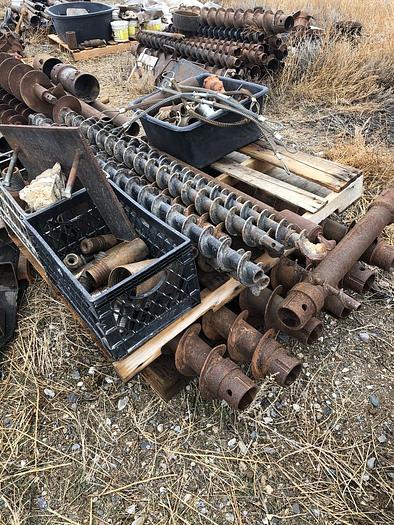

2. Mobile Tri-lok Hollow Stem Augers (HSA) 2 ¼ I.D. x 4 3/8 O.D.; 10 ea @ 5 ft length and 1 bit.
3. Mobile Tri-lok HSA 3 ¼ I.D. x 6 ½ O.D.; 7 ea @ 5 ft and extensions and 1 bit.
4. Mobile Tri-lok HSA 4 ¼ I.D. x 7 5/8 O.D.; 15 ea @ 5 ft and 2 short extensions, adapter 6 5/8 X 4 ¼ and 1 bit.
5. Mobile AWML Rod (1 3/8 I.D. x 1 /3/4 O.D.); 15 ea @ 5 ft and short lengths, center and lifting plugs.
6. Mobile NWML Rod (2 ¼ I.D. x 4 3/8 O.D.); 11 ea @ 5 ft and short lengths, center and lifting plugs.
7. Mobile 11 Mobile 1 gal containers of new replacement blades, spade and blocks for bits.
8. Various size Landing Plates.
9. Mobile AW, BW, and NW Bowls and Slips for auger flights Rods.
10. Mobile Grout Swivel
11. 140# in hole hammer (2 7/8 inch O.D.).

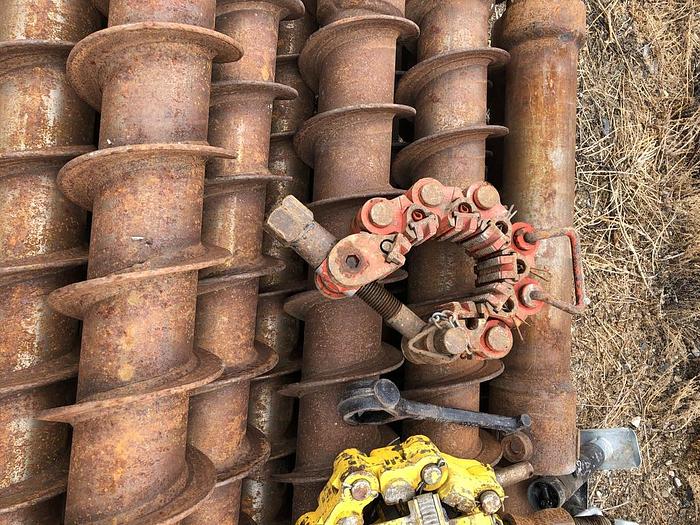

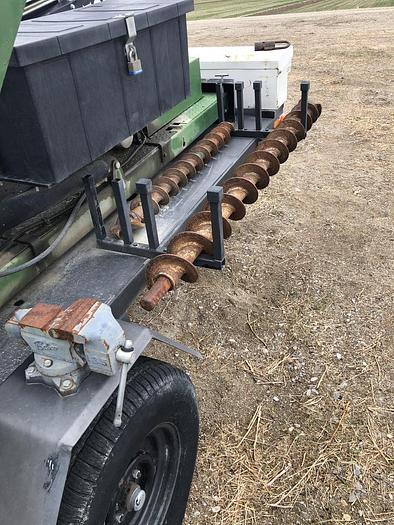

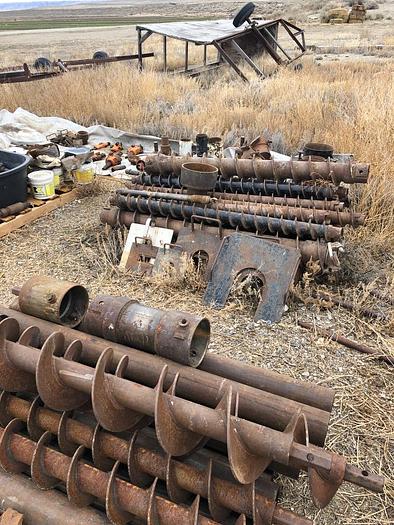

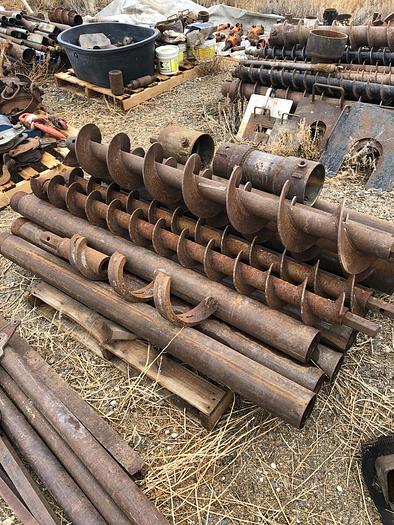

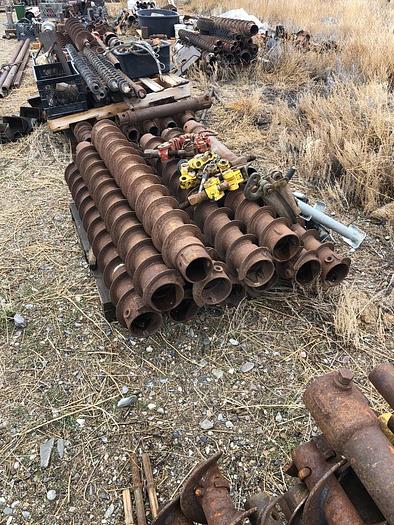

12. Solid Auger Flights 1 ¾ O.D. x 2.5 ft (^4).
13. Solid Auger Flights 3 ½ O.D., 5 @ 5 ft.
14. Solid Auger Flights 4” O.D., 5 ea @ 5 ft and 5 ea @ 3 ft with bit.
15. Solid Auger Flights 5 ½” O.D., 10 ea @ 5 ft. with bit.
16. Solid Auger Flights 9 1/2” O.D., 3 ea @ 5 ft. with bit.

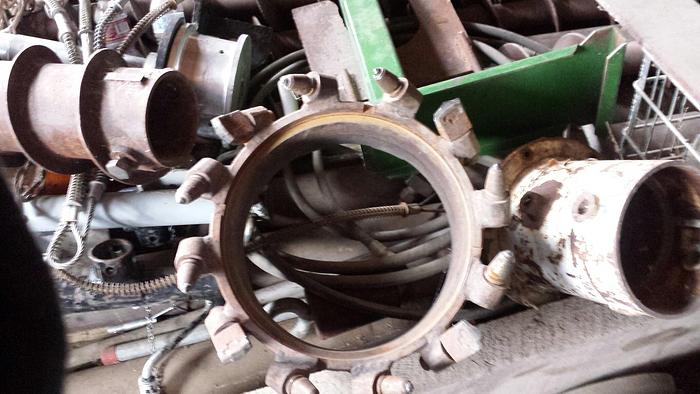

17. Truespin (Pengo/Bradco) HSA 3 ea 12 1/4 I.D. bit (2 new 1 used) HD cutters
18. Truespin (Pengo/Bradco) HAS 1 ea 12 1/4 I.D. X 2” hex drive head (new)
19. Truespin (Pengo/Bradco) HSA 1 ea 12 1/4 I.D. lifting device (new).
20. Split spoon samplers (8 - 2 and 3 inch @ 2 ft) and sampling equipment.
21. Rock head bits for solid flights (4, 6 and 8 inch O.D.).

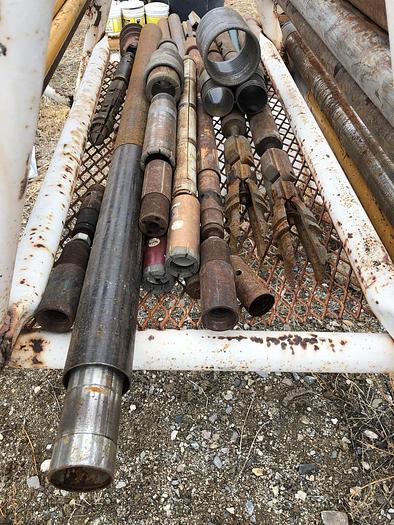

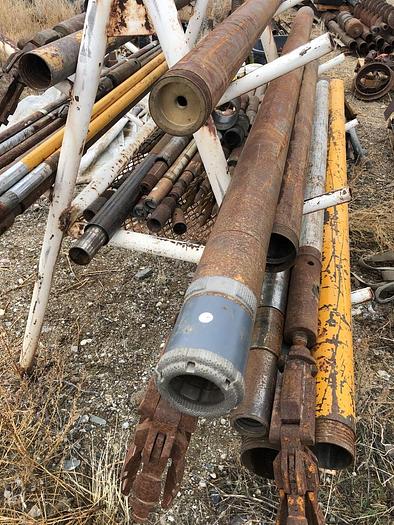

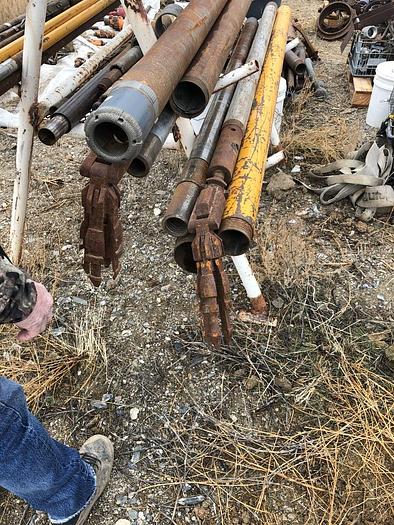

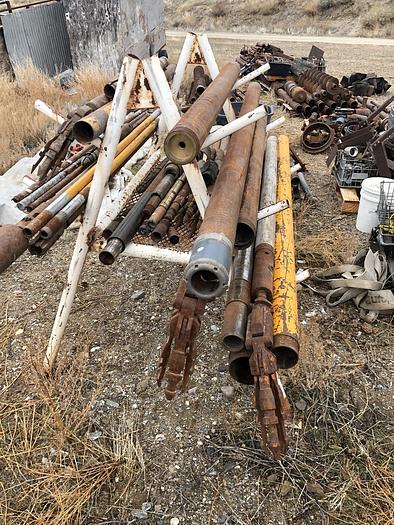

CORING EQUIPMENT

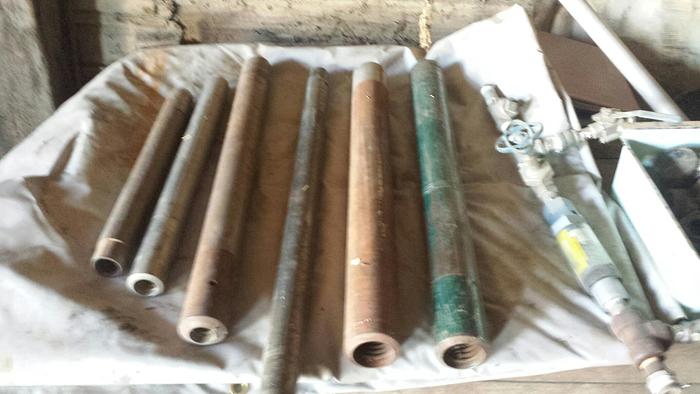

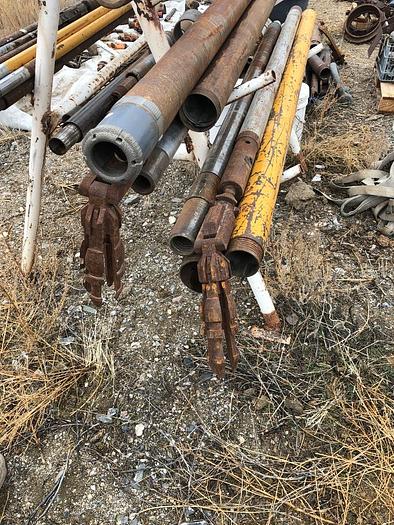

1. CPWL (1 new) 5 ft x 4.827 o.d. by 3.345 i.d. (with 2 inner tubes complete with rotary sub)
2. HQ3WL (1 new 1 used) 5 ft X 3.79 inch with 2 inner tubes complete with rotary sub and surface set bit (25/ct) and reamer.
3. EWD3 conventional core barrels (2) with 2 inner barrels and bit/reamer.
4. N conventional barrel with bit and reamer and inner barrel (good condition).
5. B conventional barrel with bit and reamer and inner barrel (good condition).

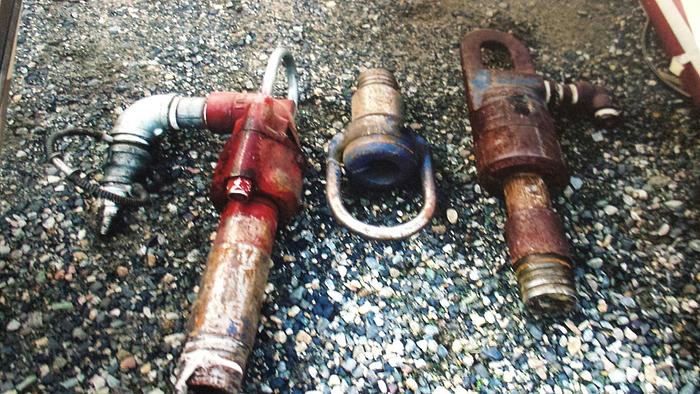

6. Water swivels (3) surface and underground (1).
7. 3 – wireline sinker bars and overshot for wireline coring systems.

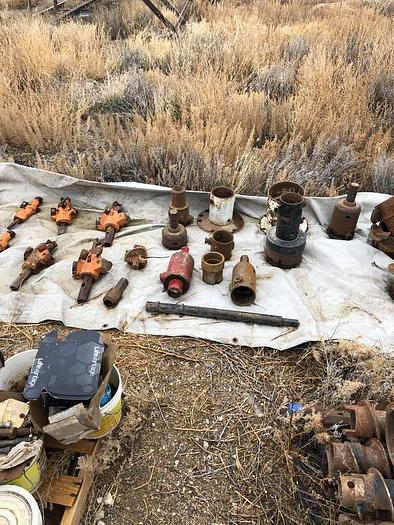

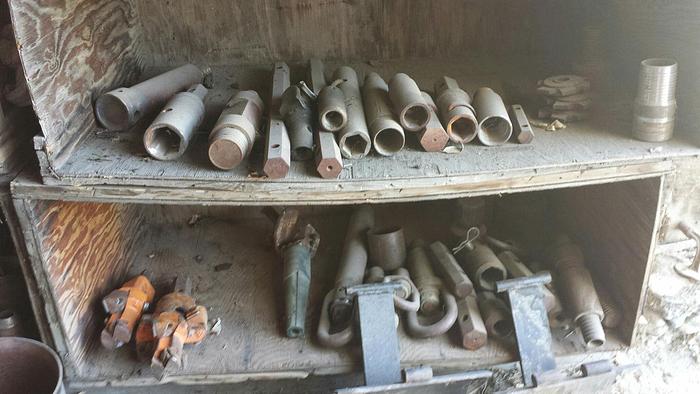

8. Various pulling plugs, holding dogs, subs, wedding bands (2) and parts.

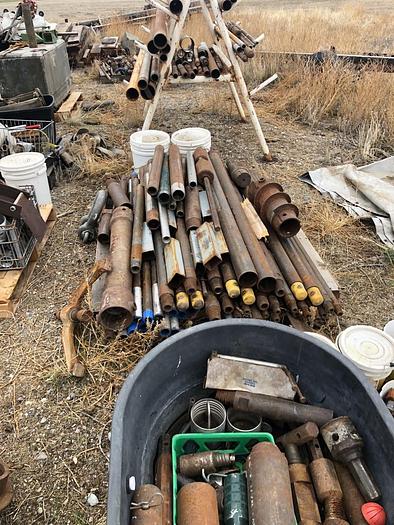

9. Casing N (12 @ 5ft) and H (16 @ 5 ft) and shoes.

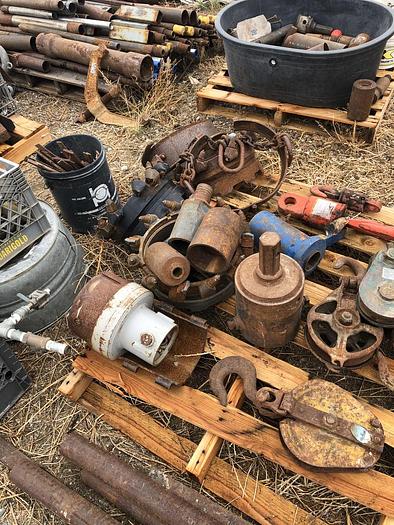

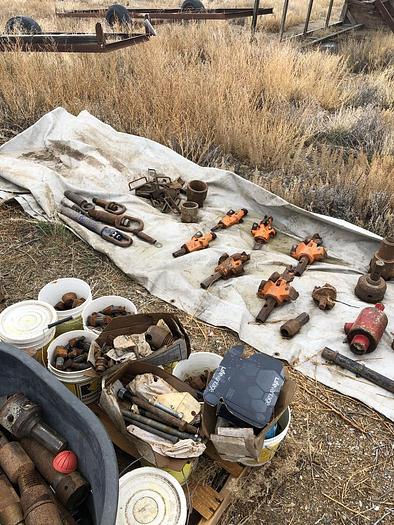

OTHER EQUIPMENT
1. Mills knife 6 and 8 inch; Trident Cable tool button bits (new) 6 and 8 inch; 2 Rock bits (4 and 6 inch); 10 ton and 3 ton Hook; Knock off high pressure steel fittings (4) and alum quick disconnects
Specifications
Manufacturer | HB19285 Concord Auger soil sampler drill |
Model | 9200 series Soil Sampling Drill |
Condition | Used |
Stock Number | HB19285 |
Hours | 40 |
