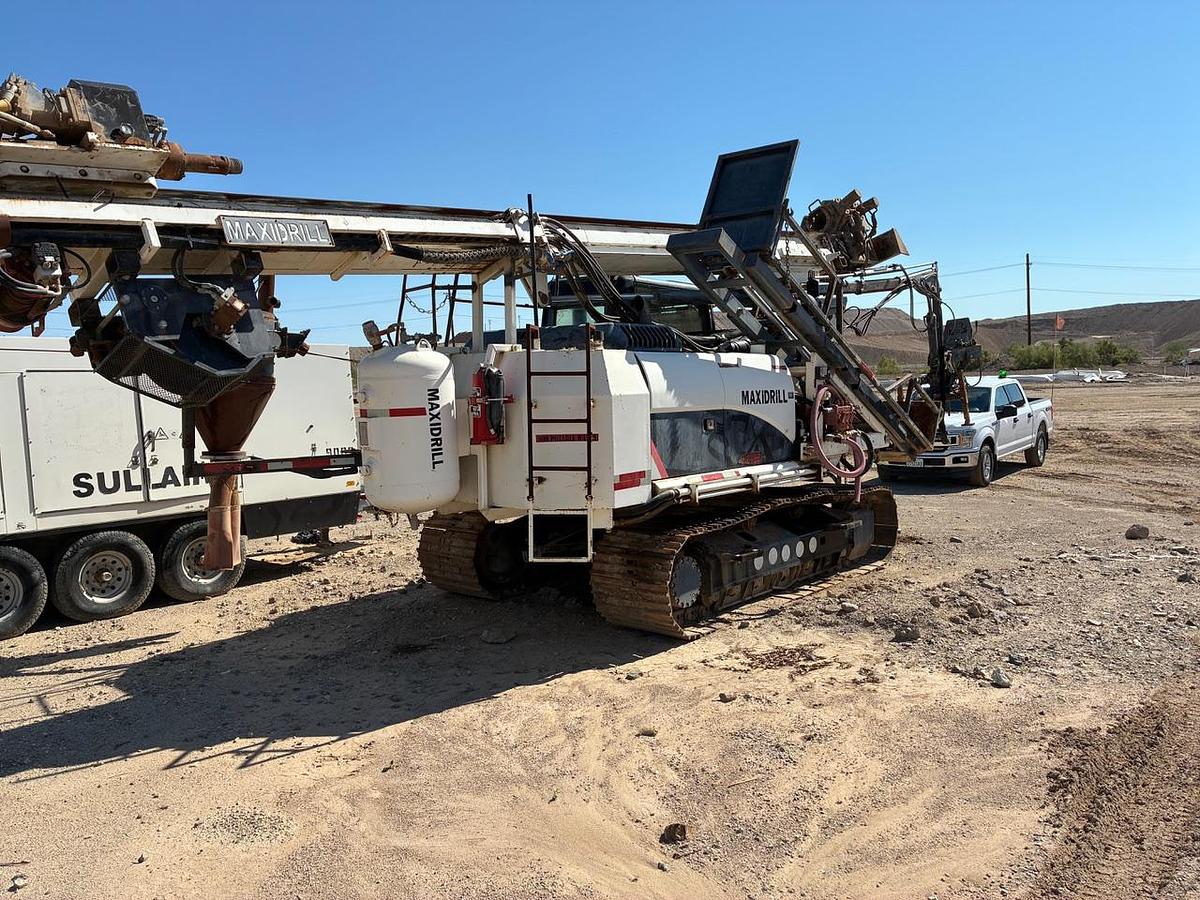

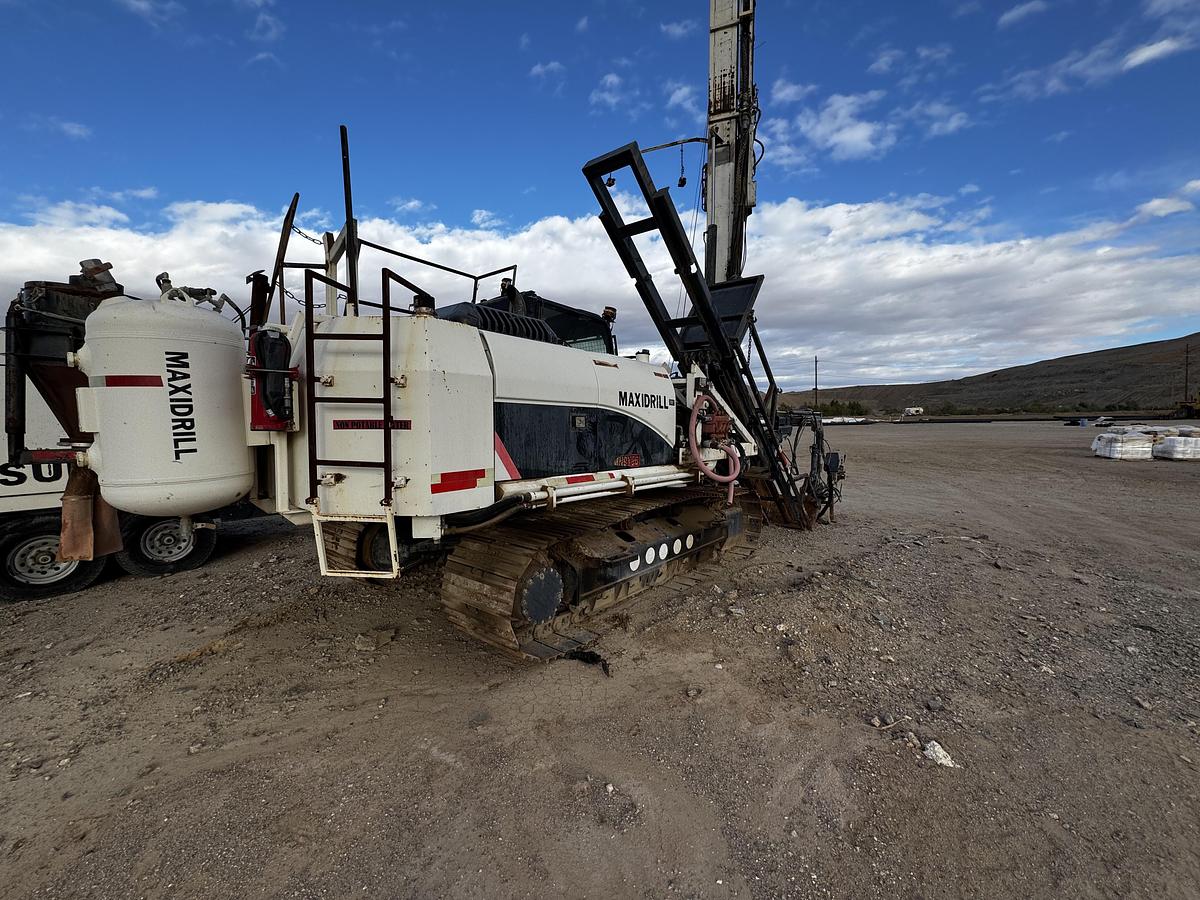

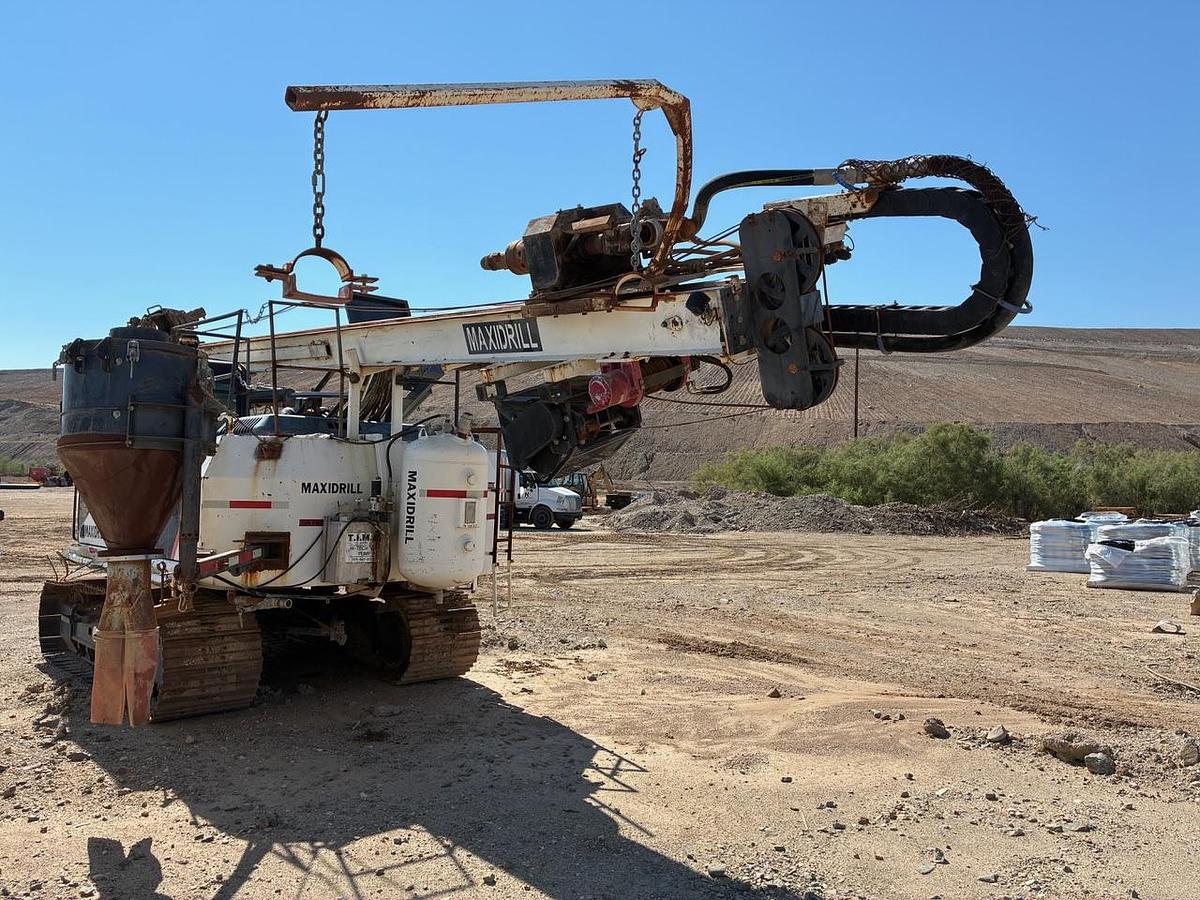

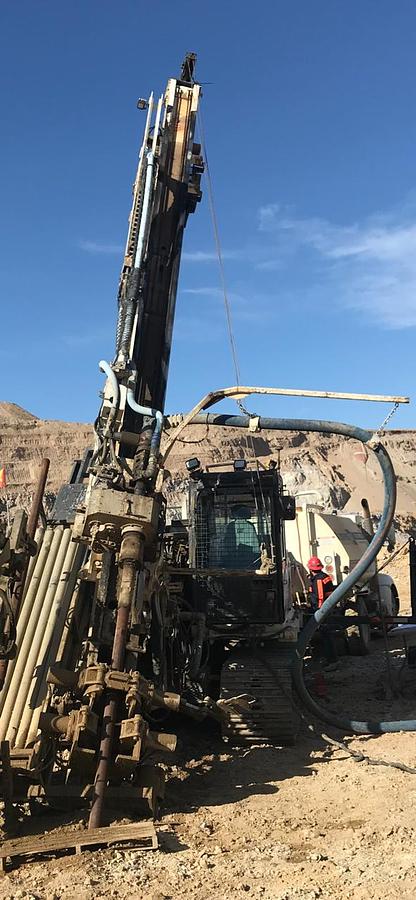

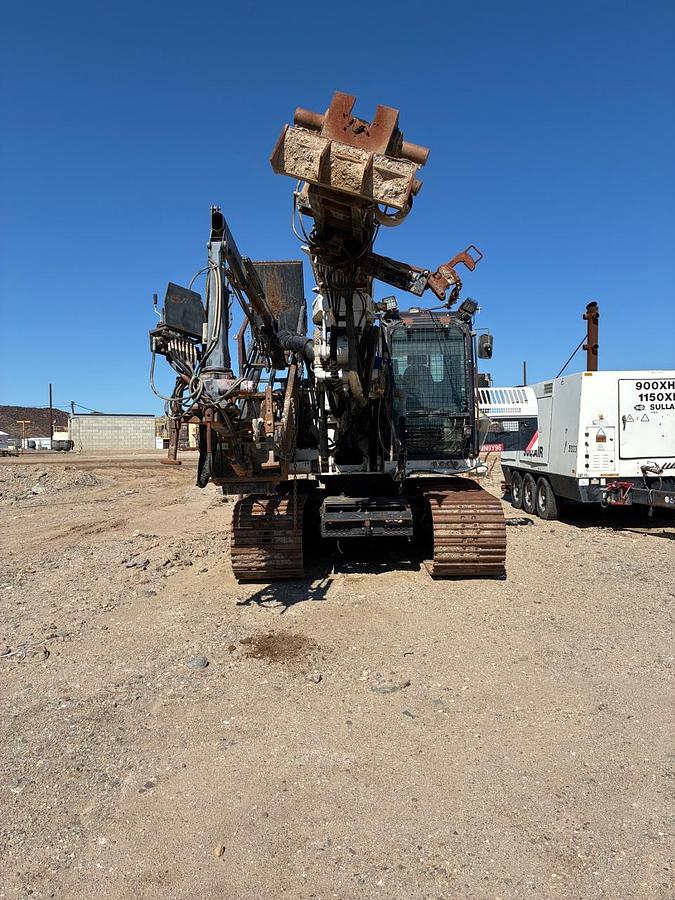

2008 Max Cat Maxicat 24 RC Drill

Originally purchased late 2018

Used for RC Drilling for Gold Southern USA

Full Maintenance records since purchase

Regular PM on Drill while owned by Mine 3,256 hours (not verified)

Has not drilled in past 3 years, started regularly and maintained every 250 Hours

Reason it has not drilled is subcontractors have been hired to RC drill

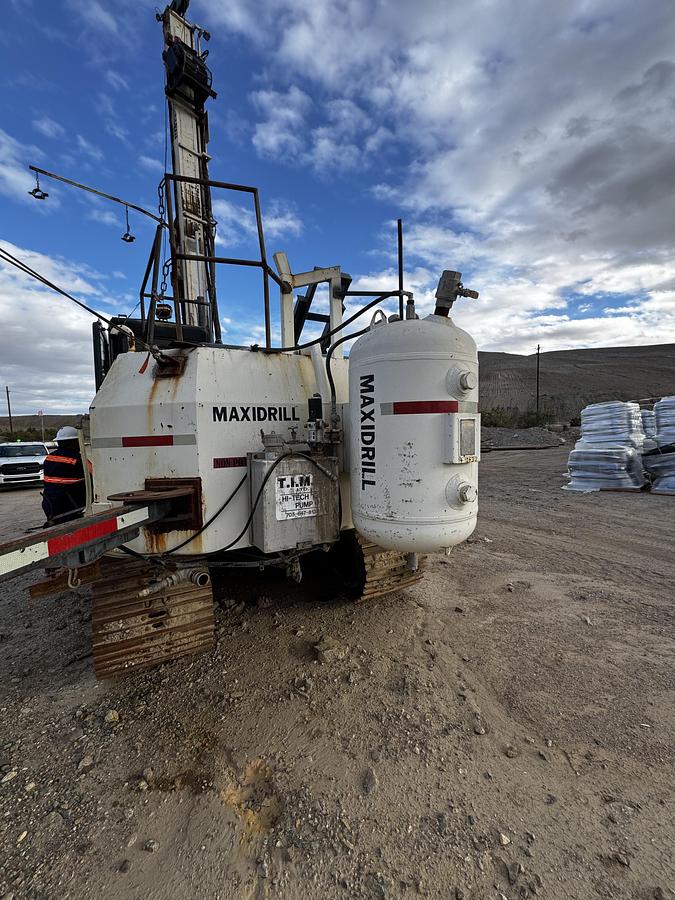

The MaxiCat RC Drill is a Canada built drill, manufactured with Cat Components where possible

55 Herbert-O'Connell, Coteau-du-Lac, Qc, Canada, J0P 1B0

Info on Mfg;  info@maxidrill.com Phone; 450-763-0212 Web site; Maxidrill.com

Video Available on new unit to illustrate Maxidrill capabilities.

This unit comes complete with the following items included;

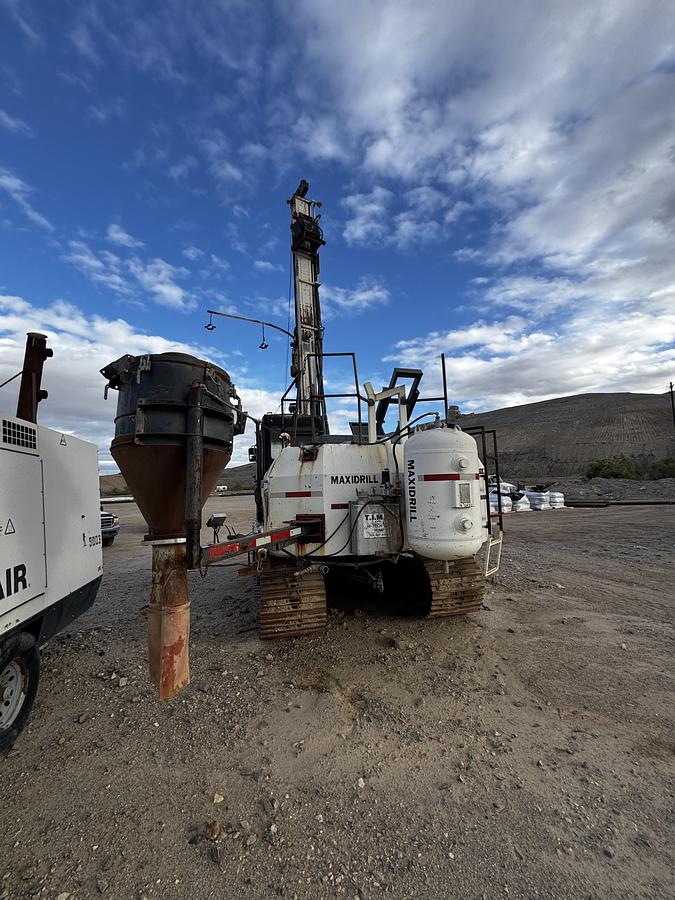

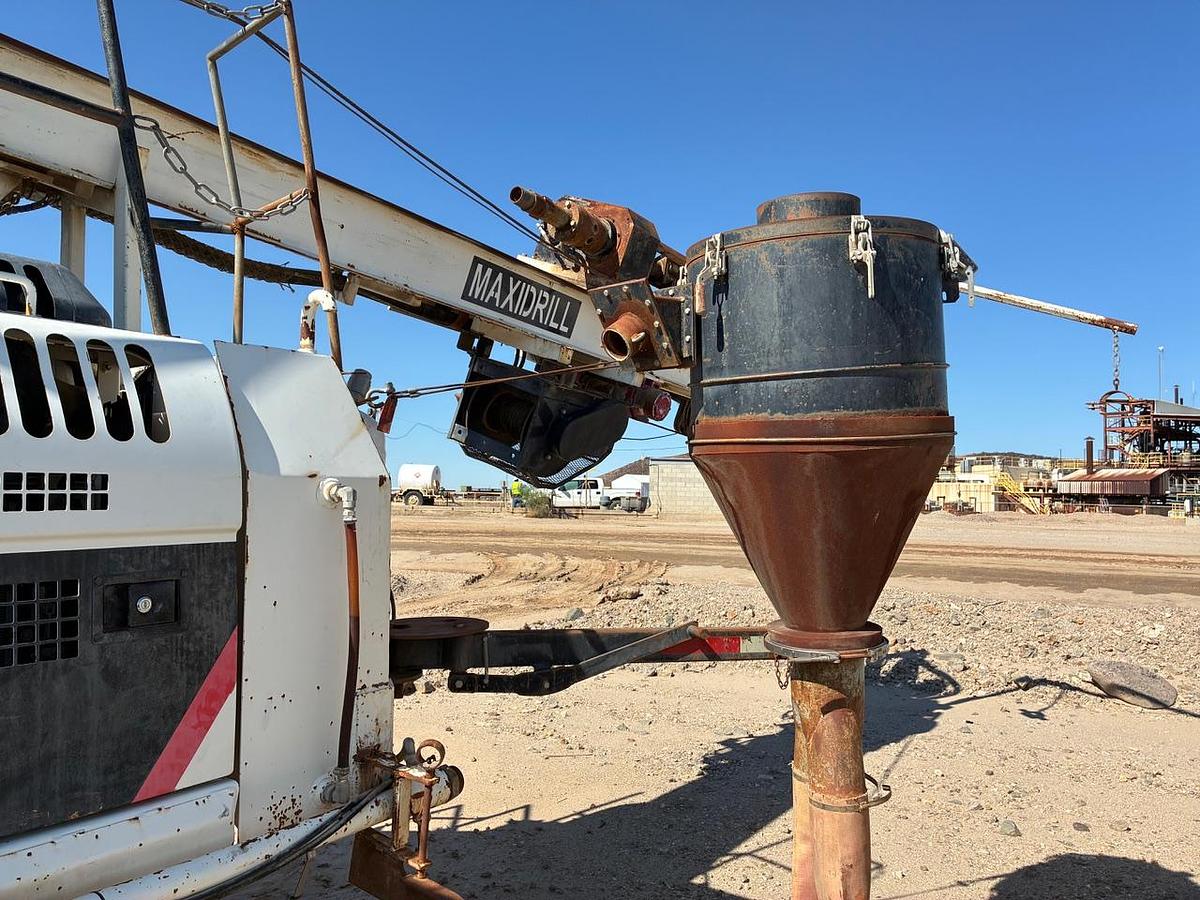

Dust collector (new hose may be required)

New Rotation head

New Water injection pump

Water tank on rear of unit (counterweight)

Splitter installed

New Hose support chain

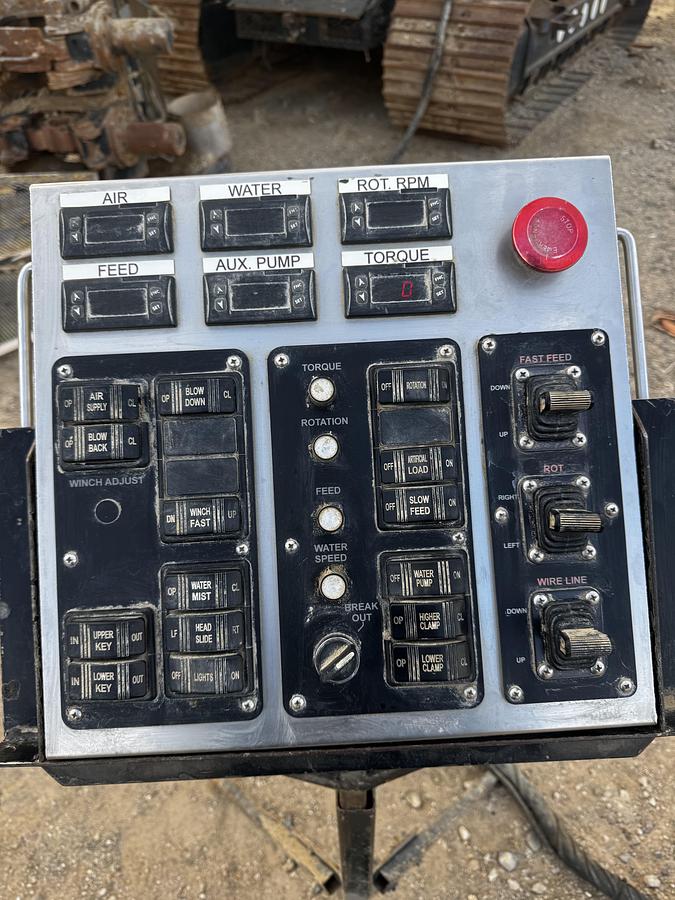

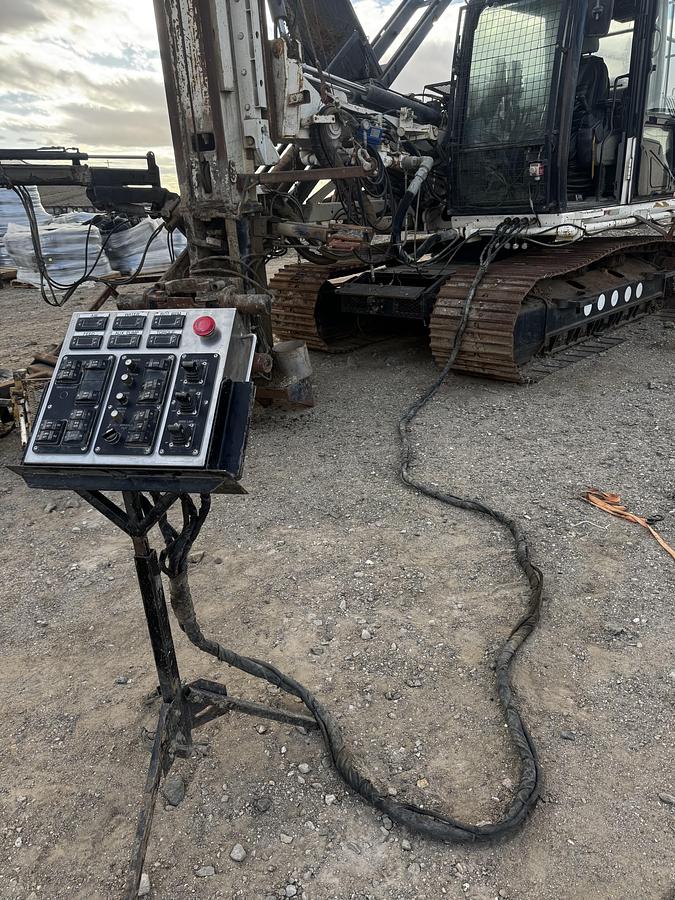

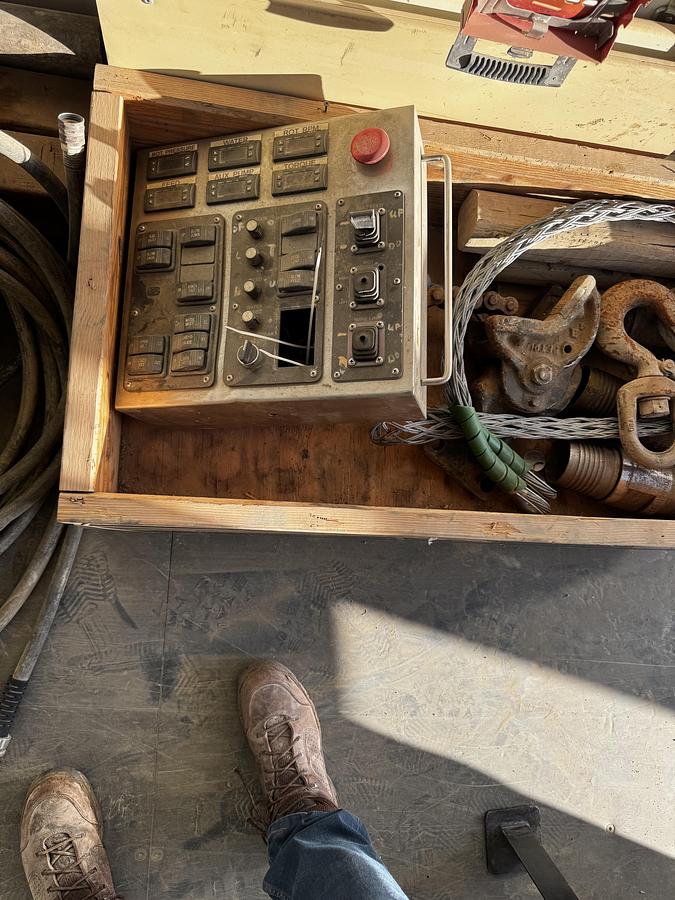

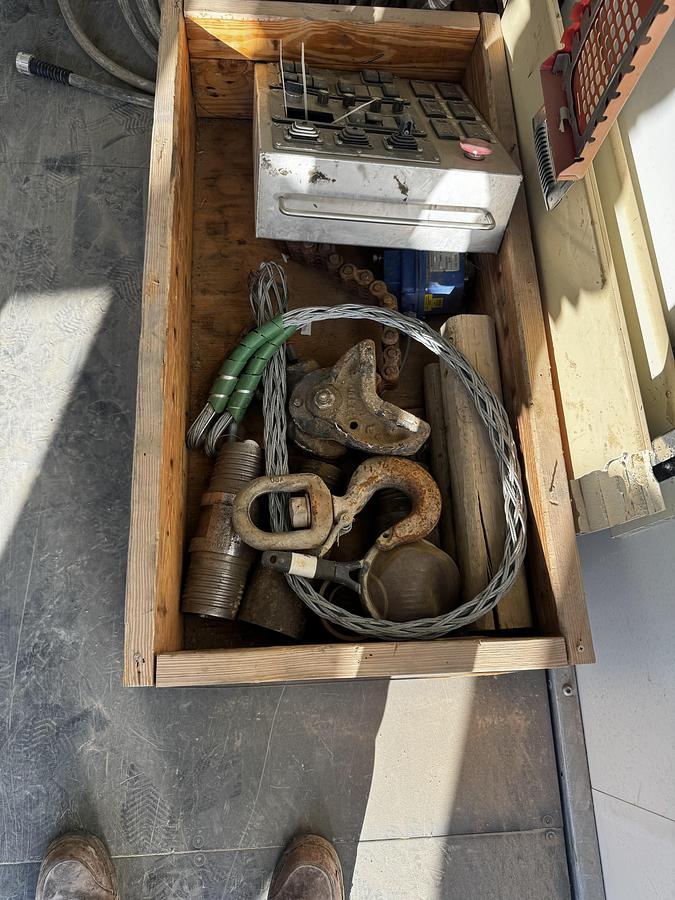

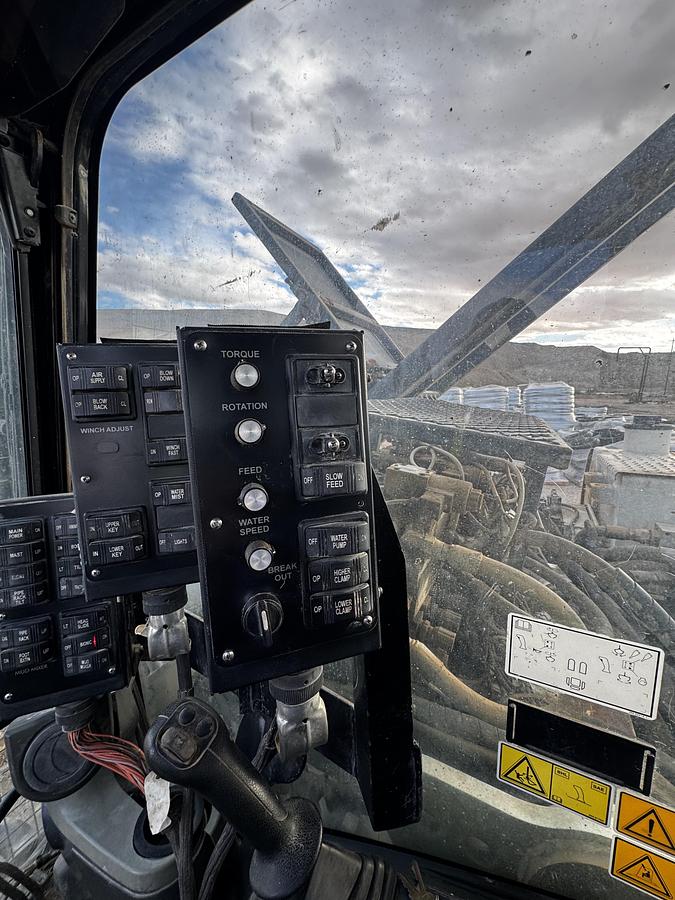

New operators remote during last year of operation

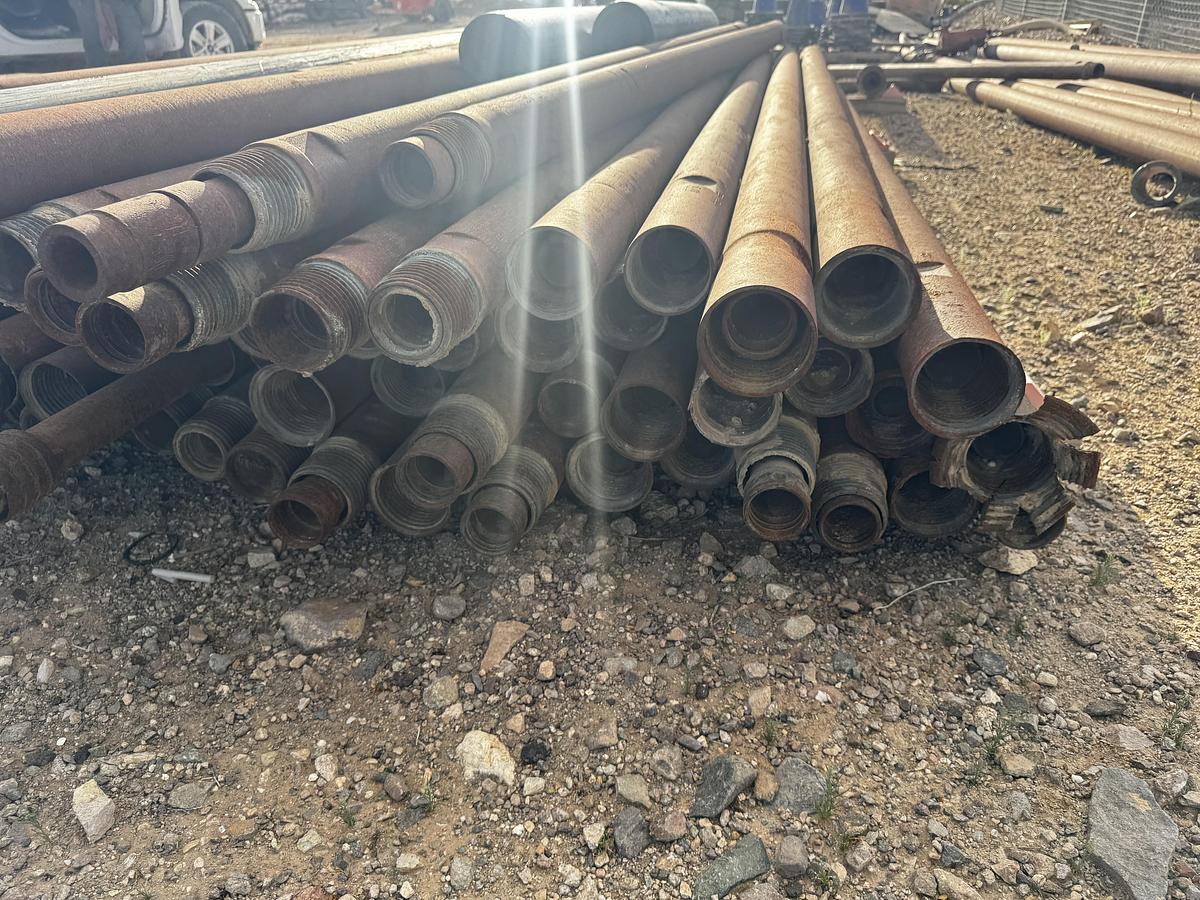

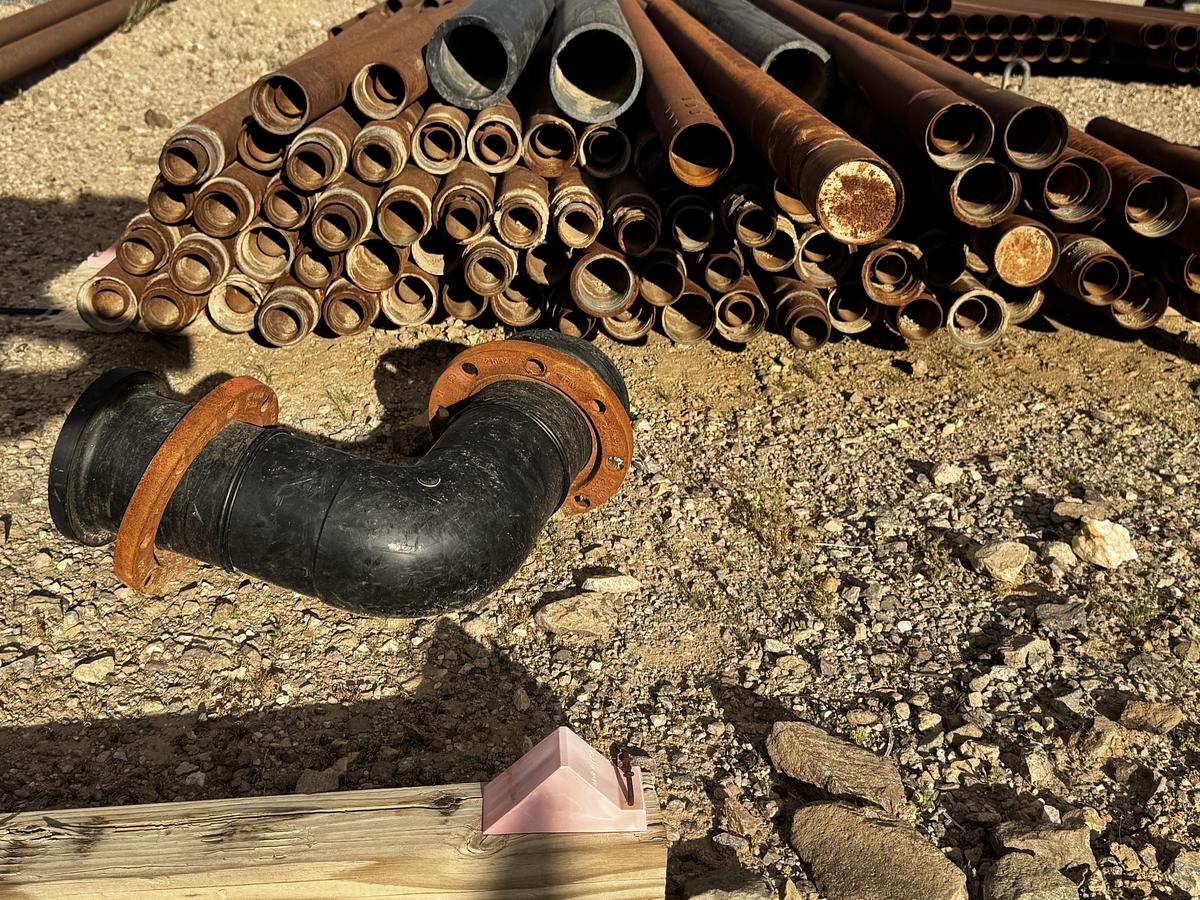

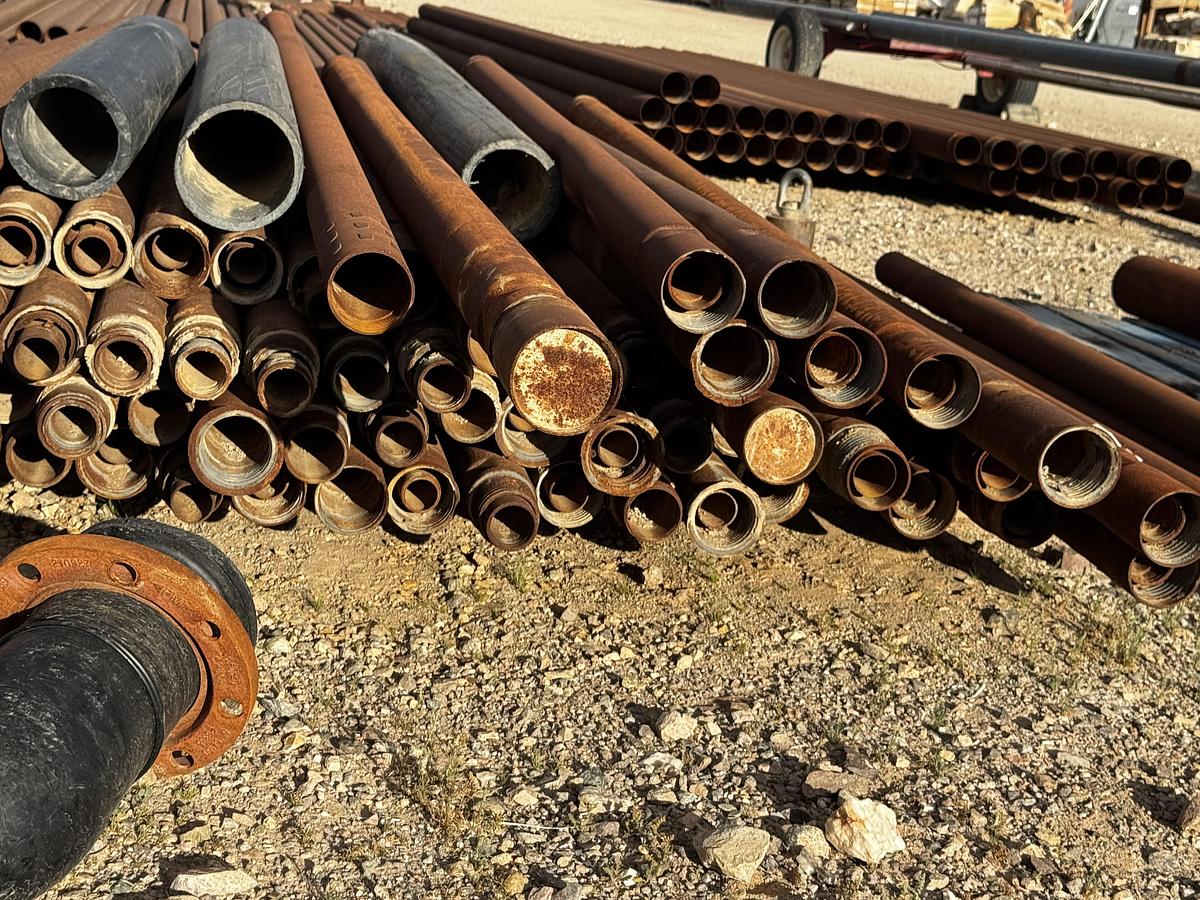

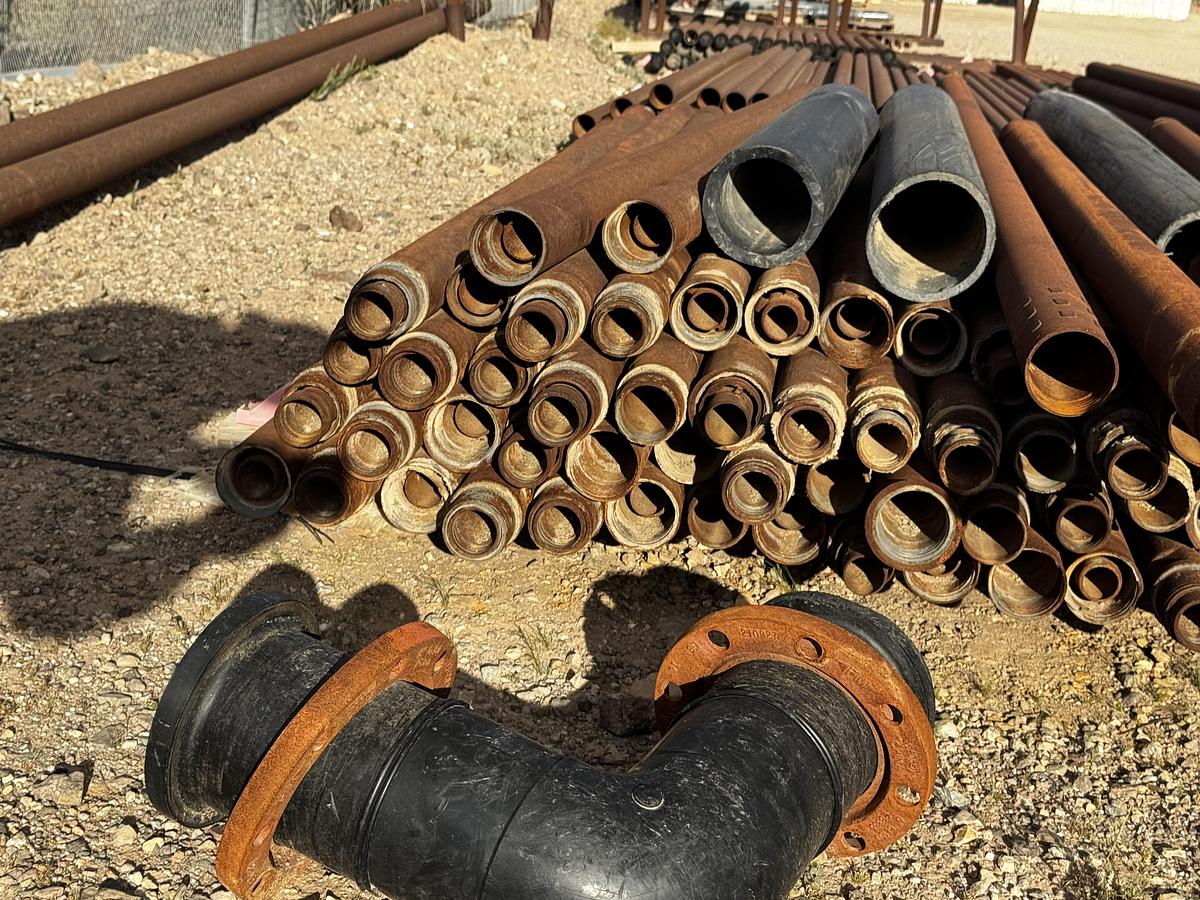

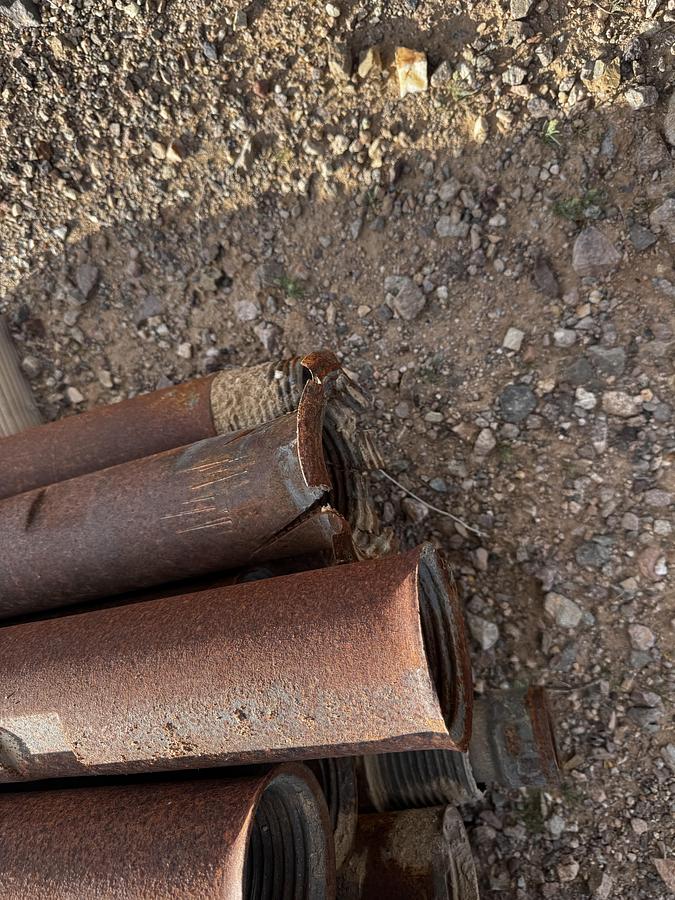

3-400 feet of used RC Pipe (4”) 50-75% of new

Upgraded pipe handler, see video I took of working unit

This drill has the following drill capabilities per the manufacturer;

Depth range with 4" RC dual tube rods 575 feet

Pull back; 14,500 lbs

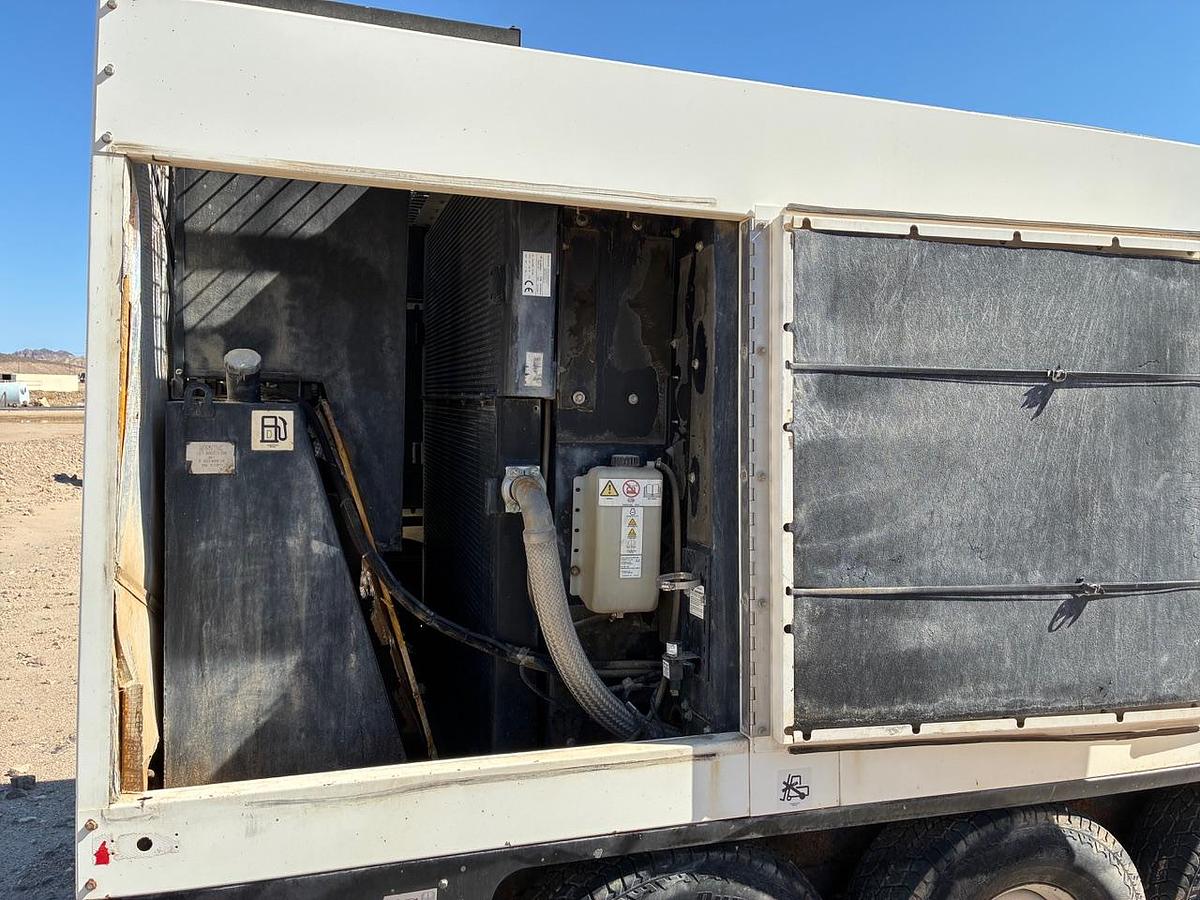

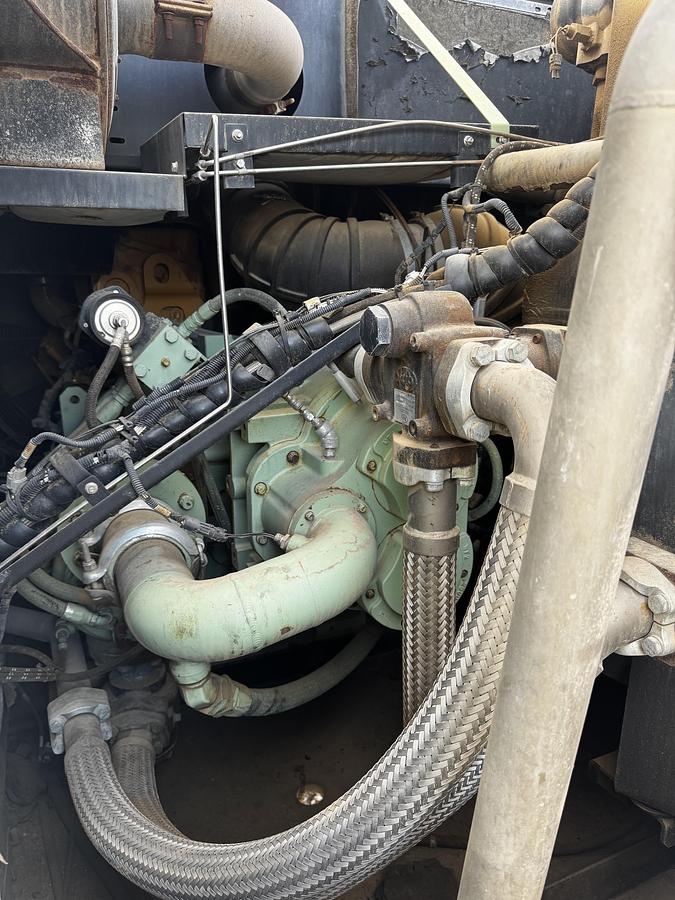

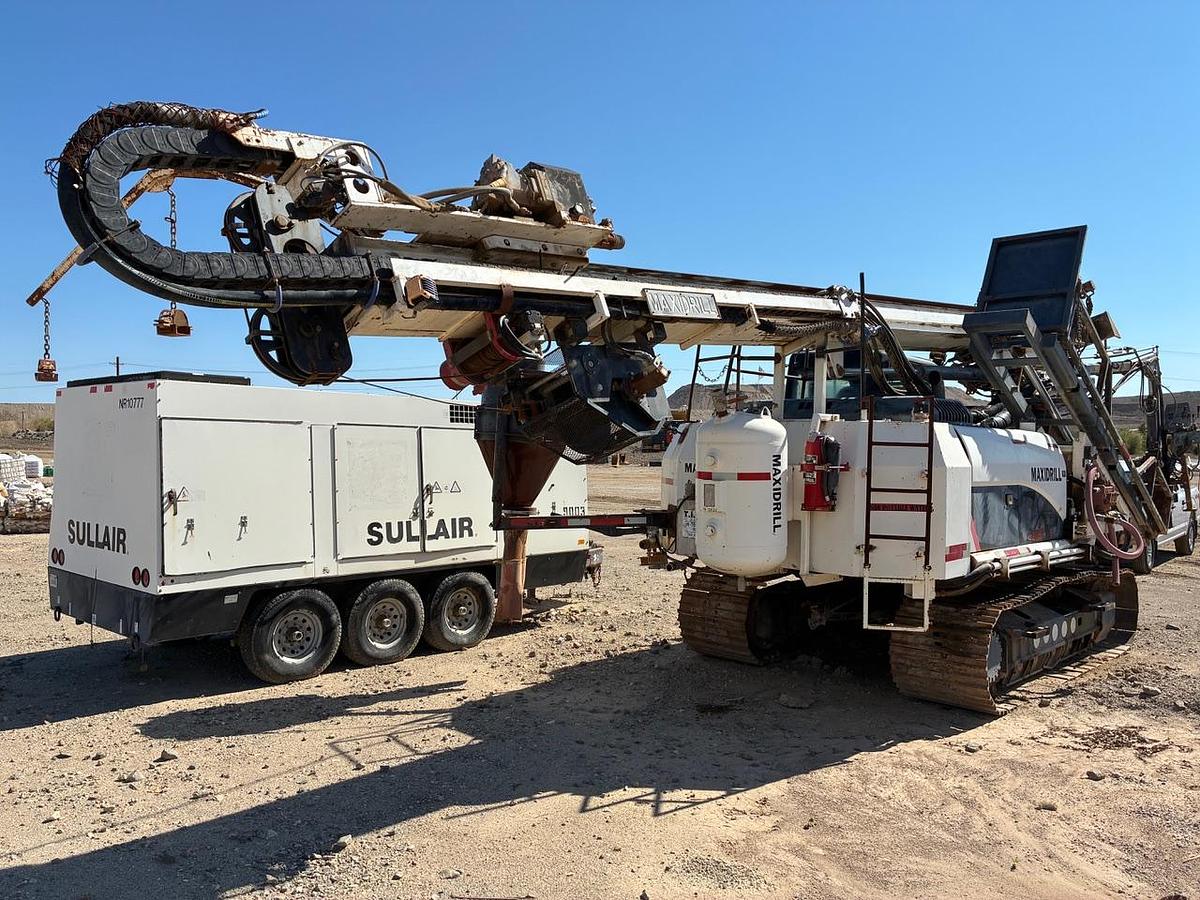

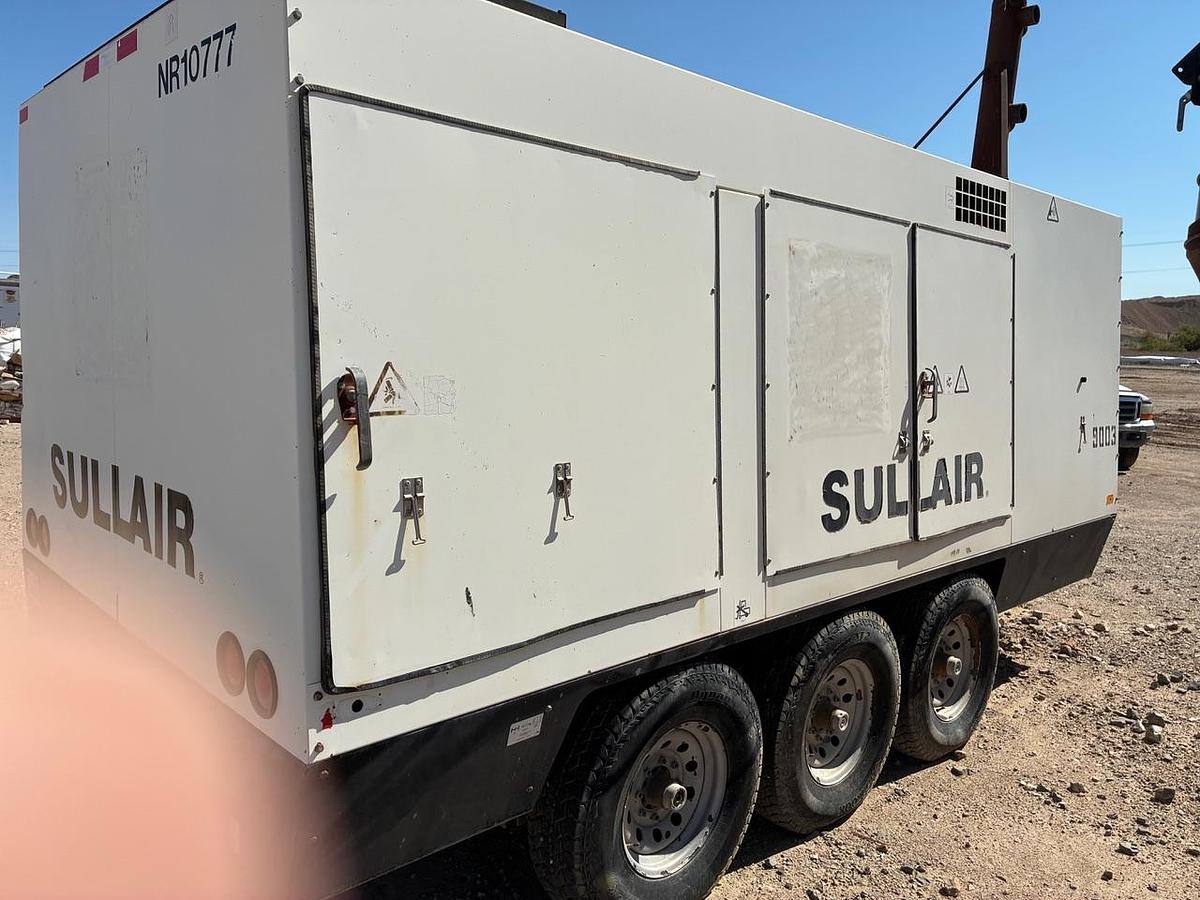

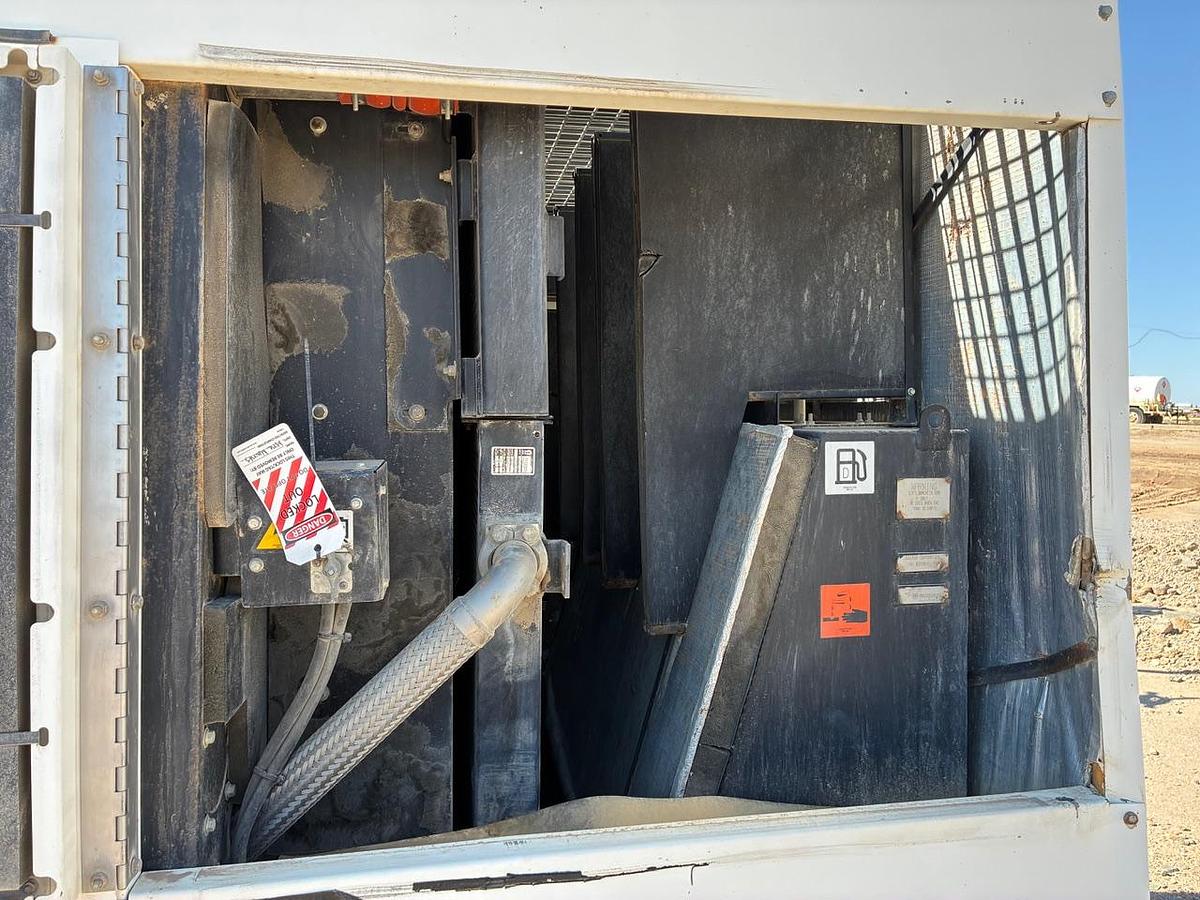

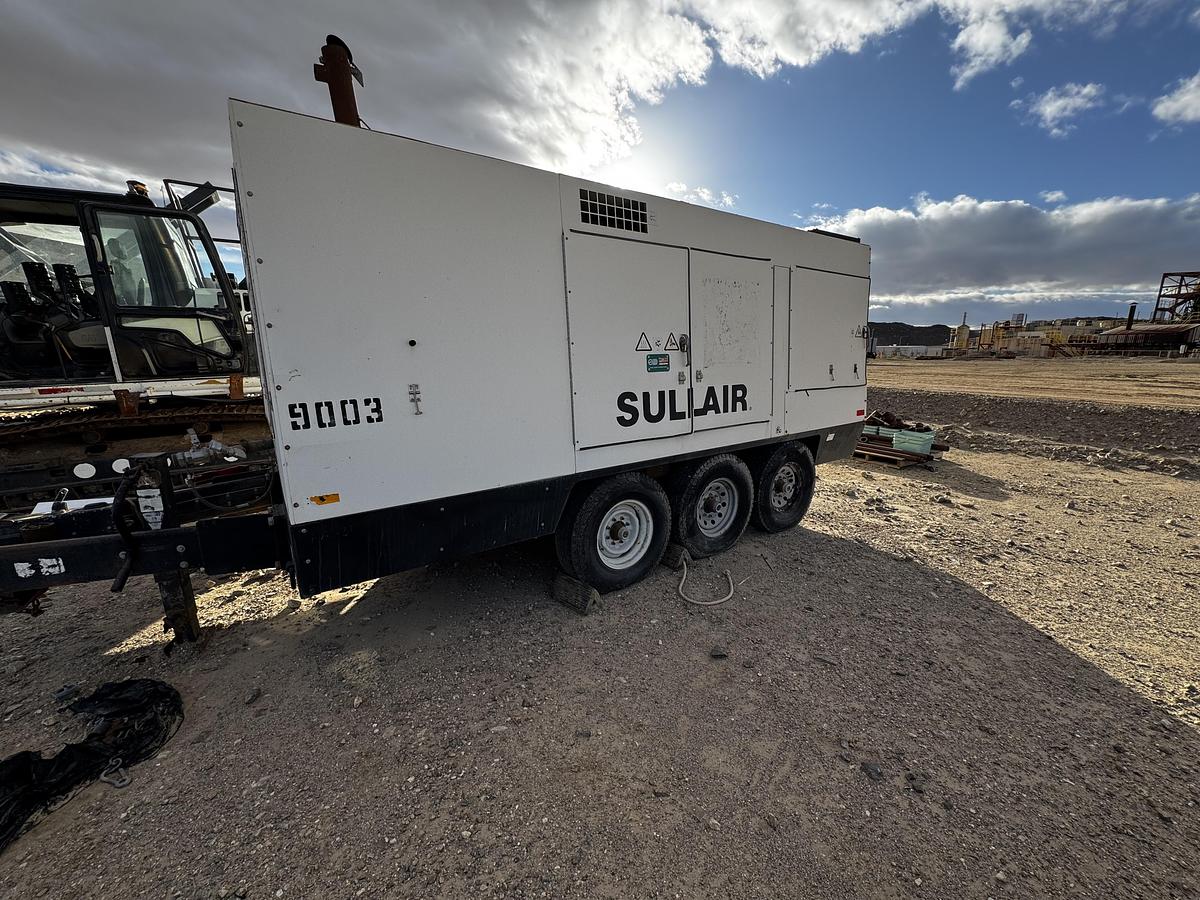

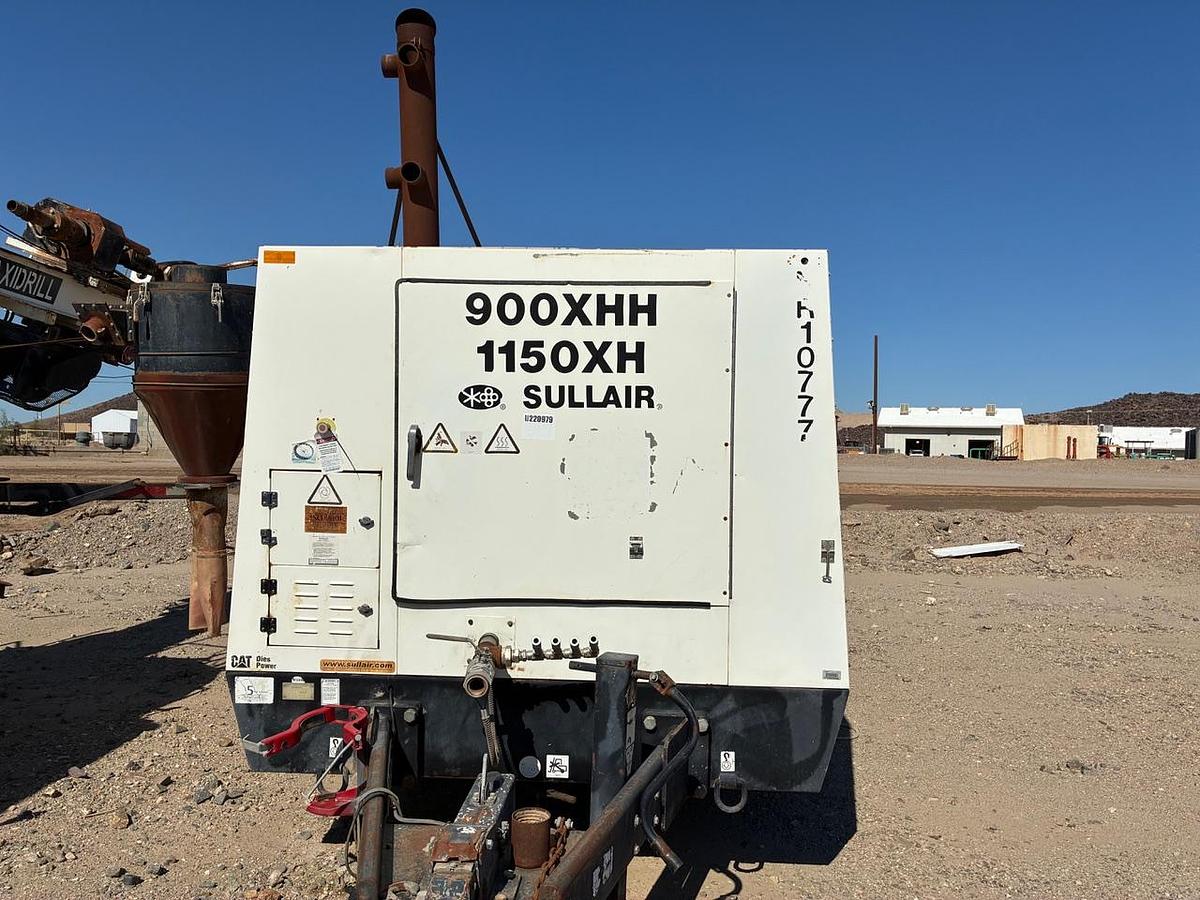

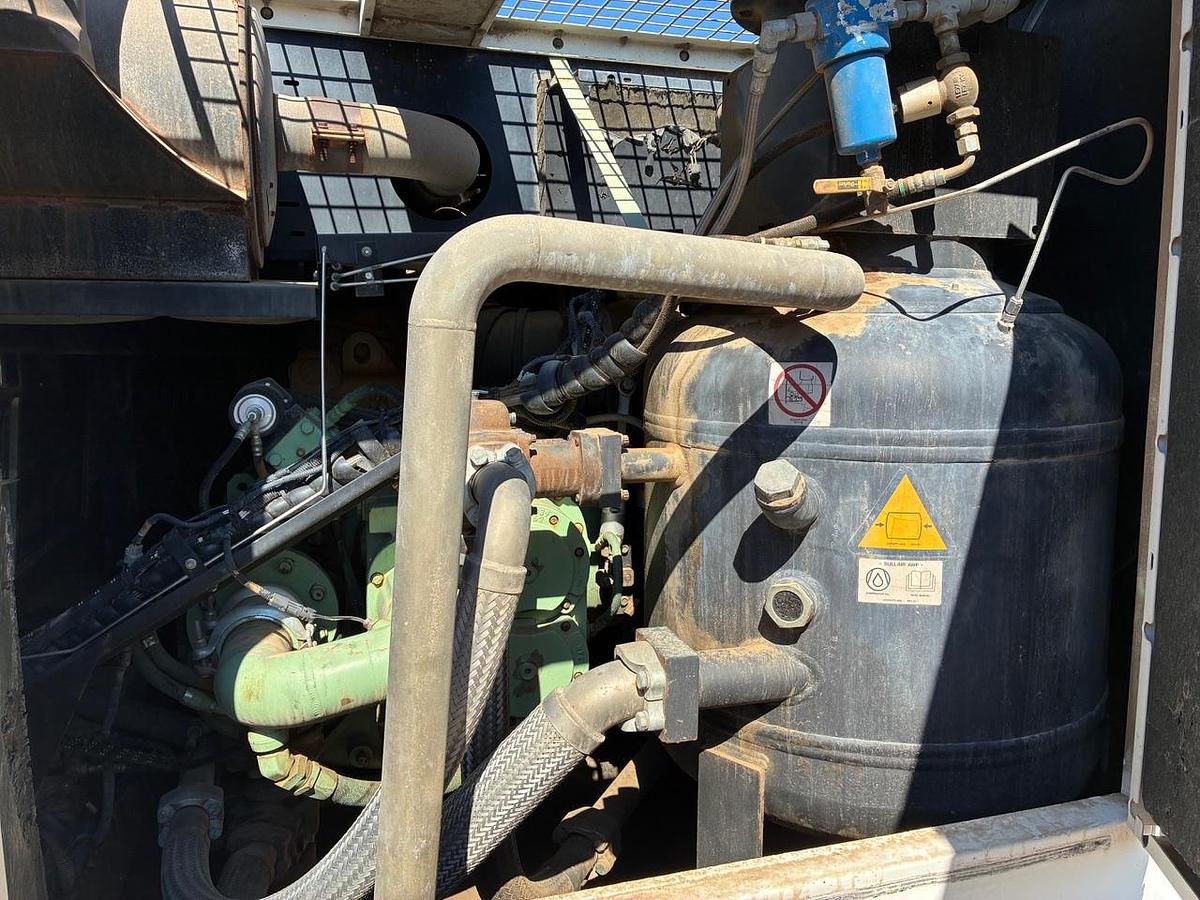

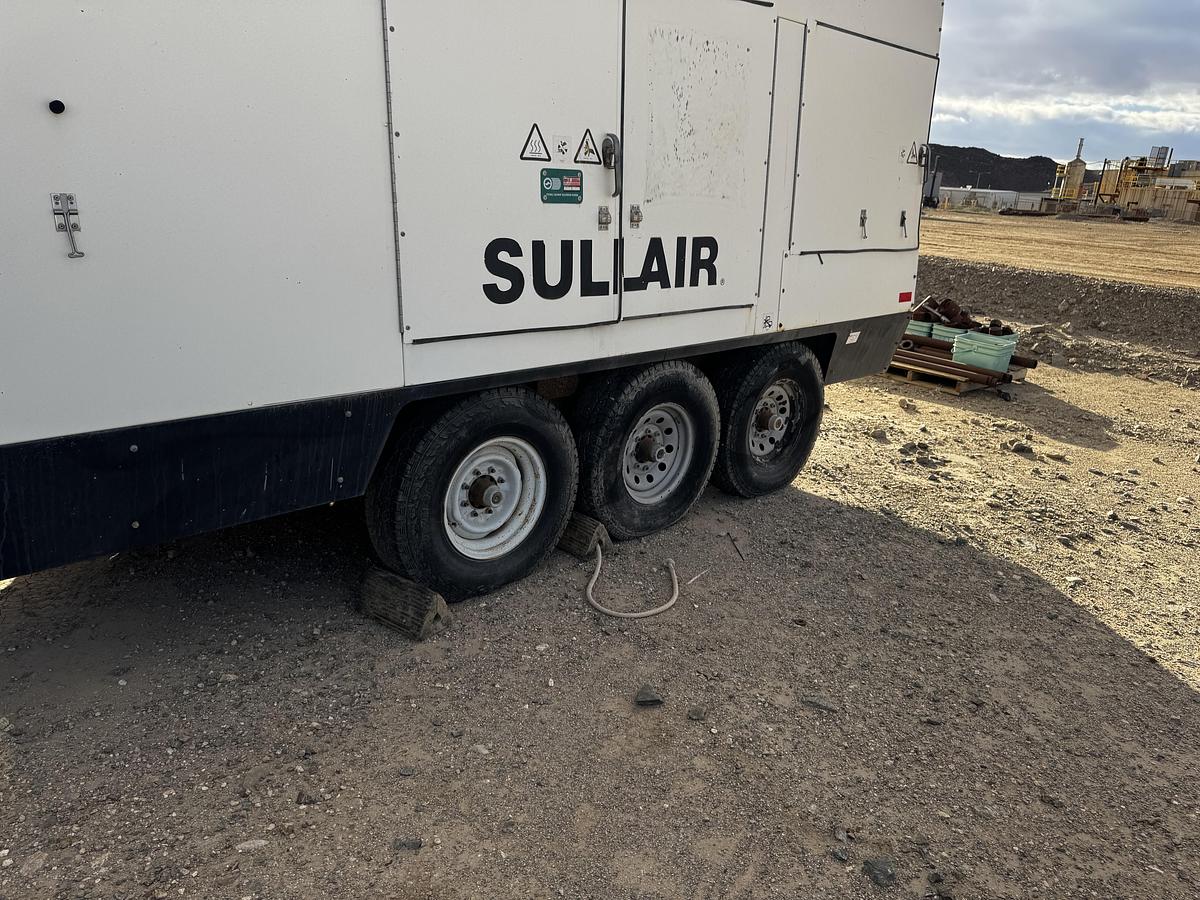

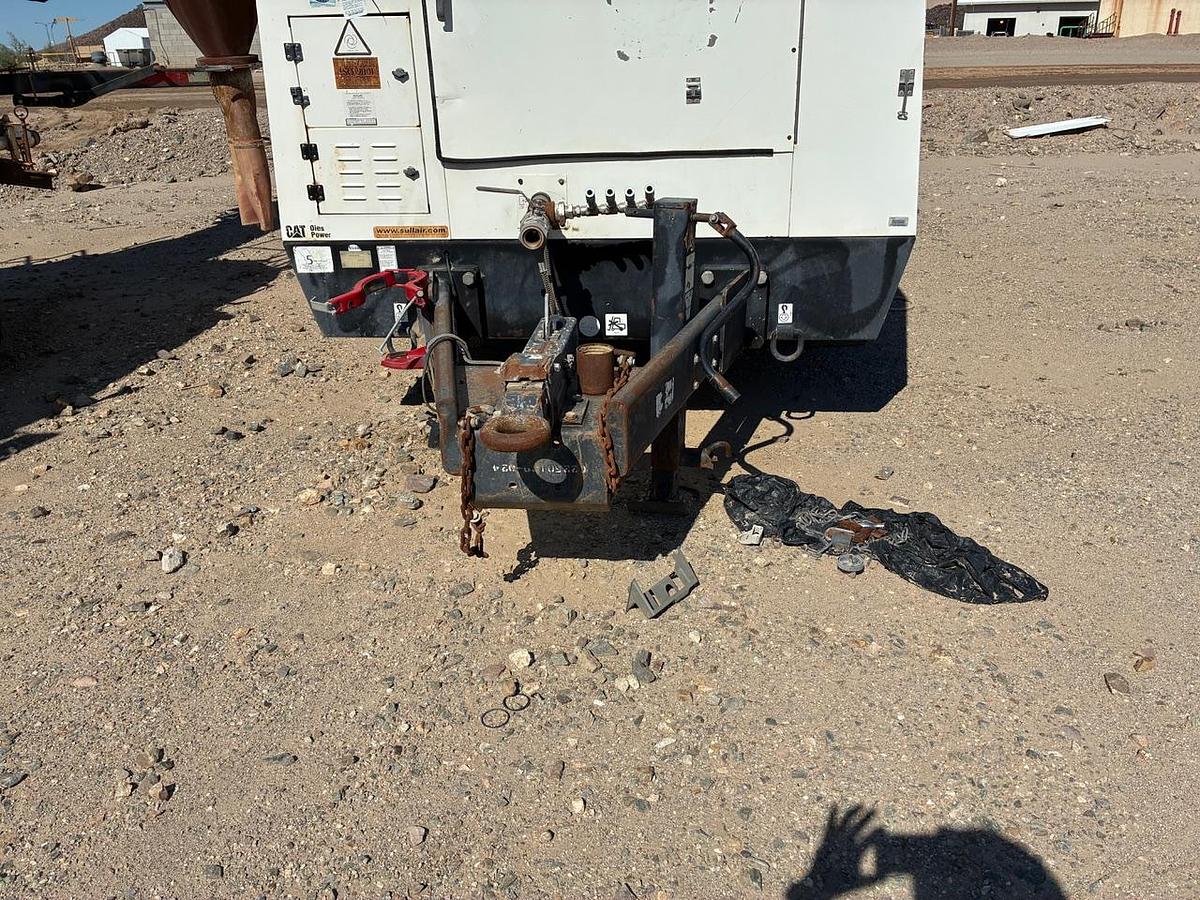

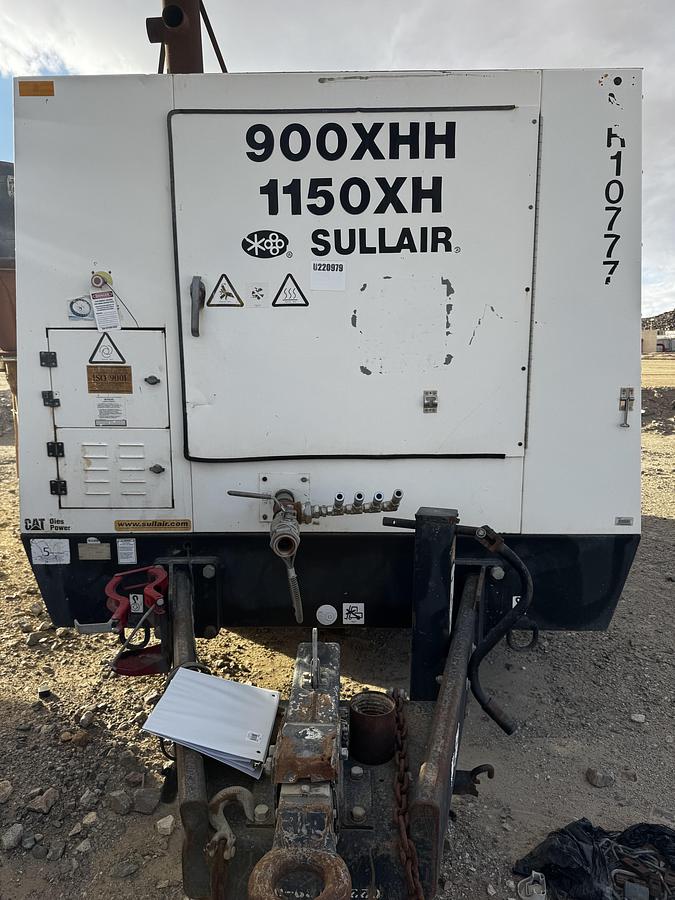

Included Sullair Triple Axle portable compressor (HP)

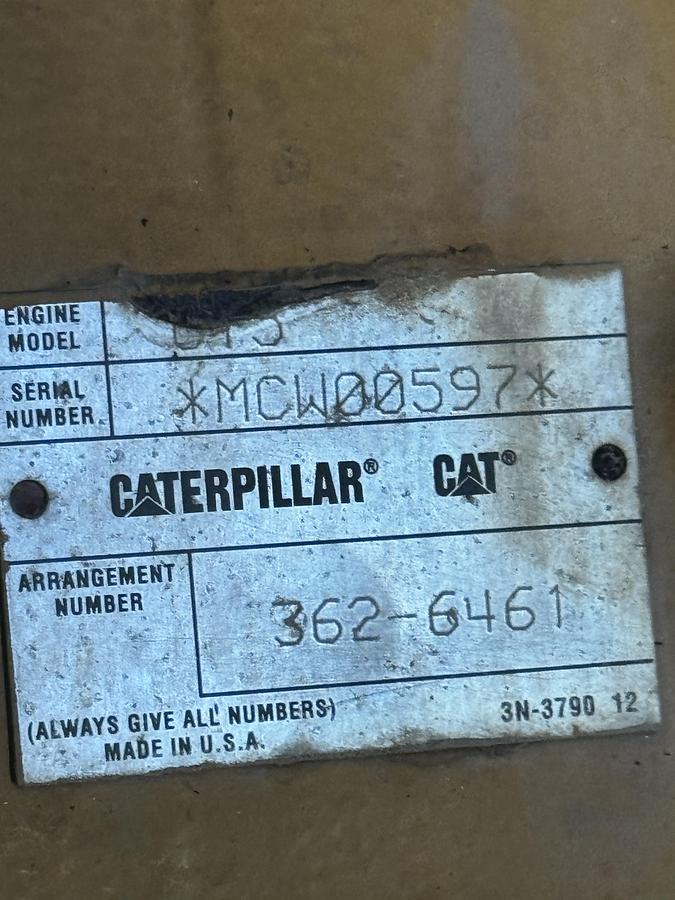

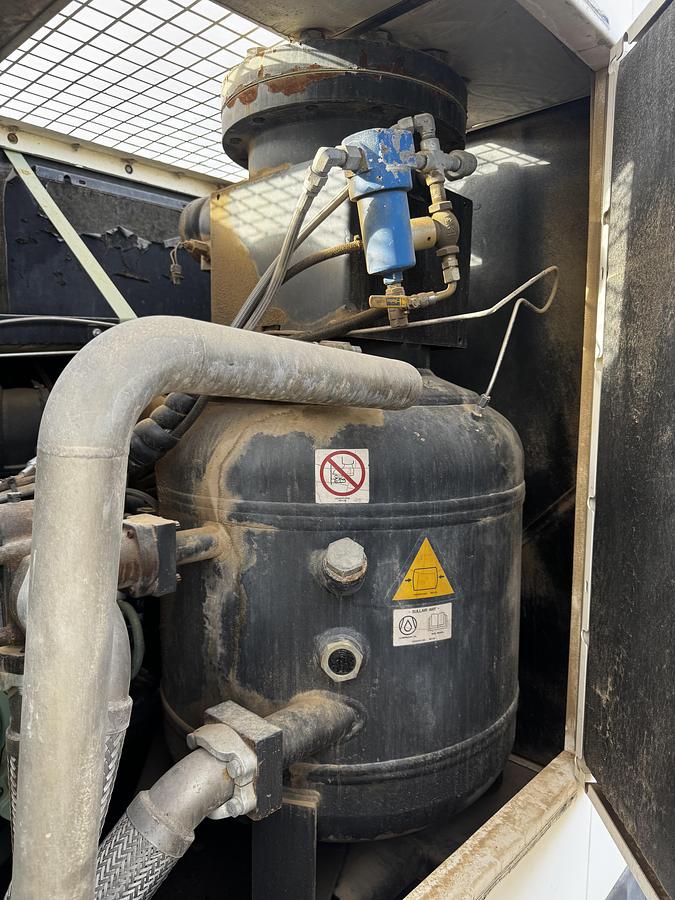

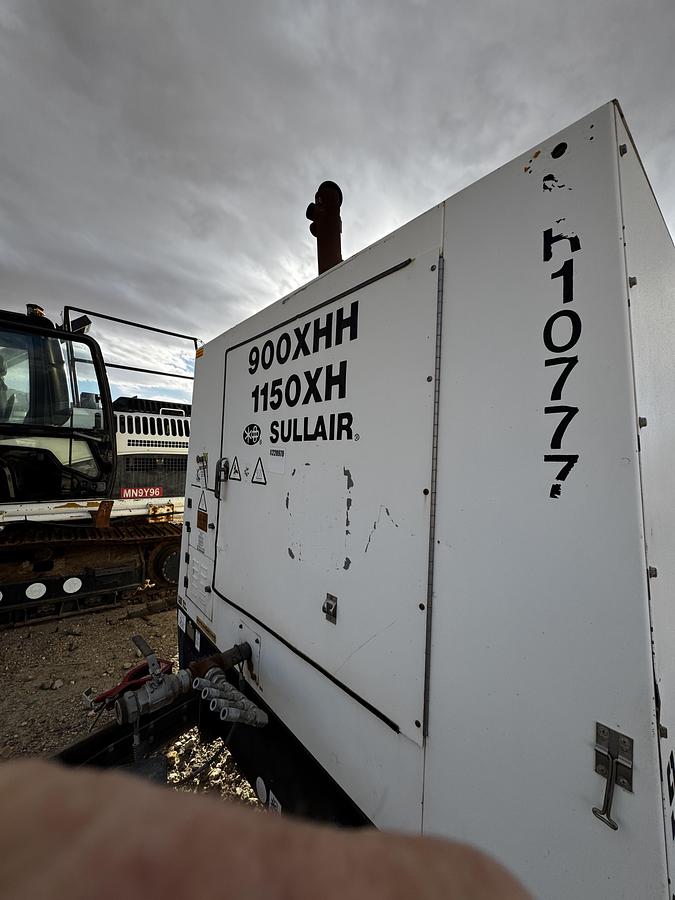

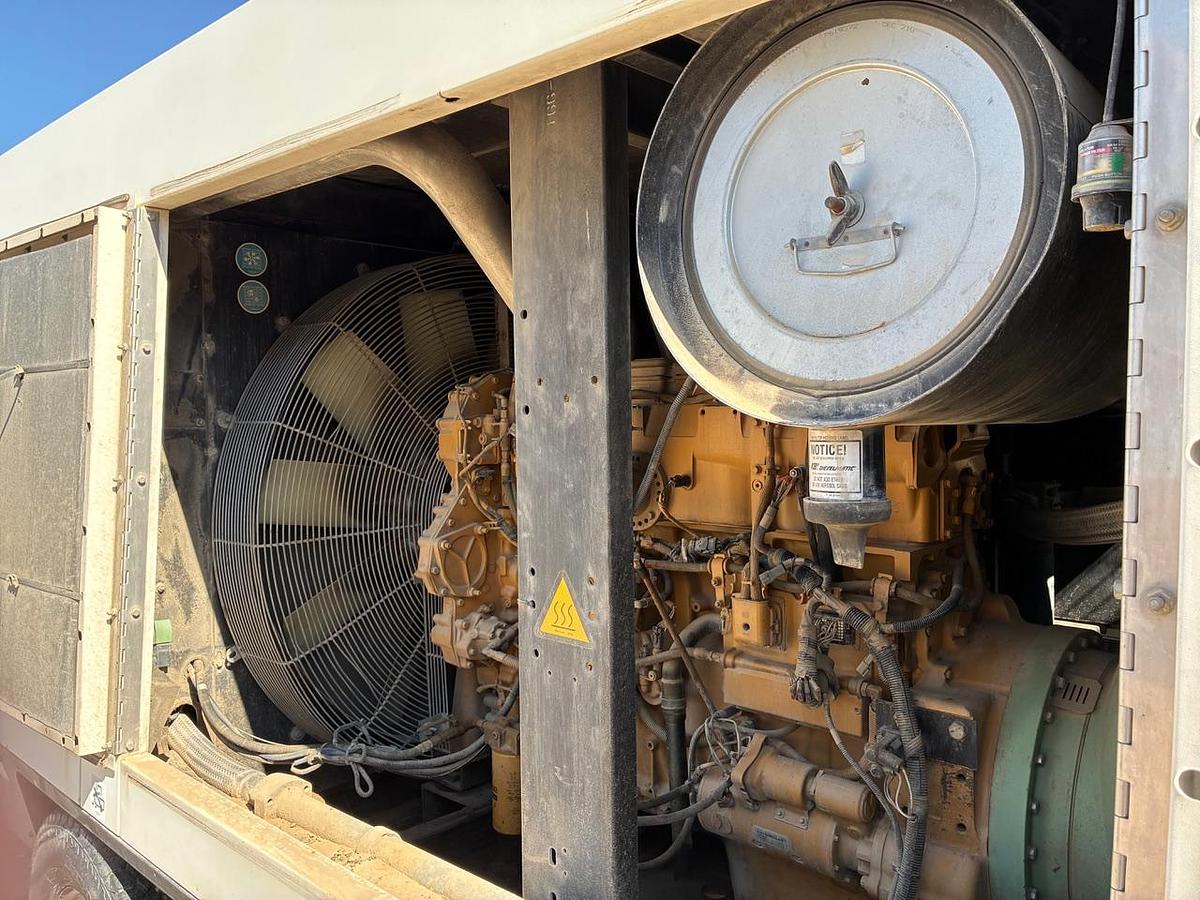

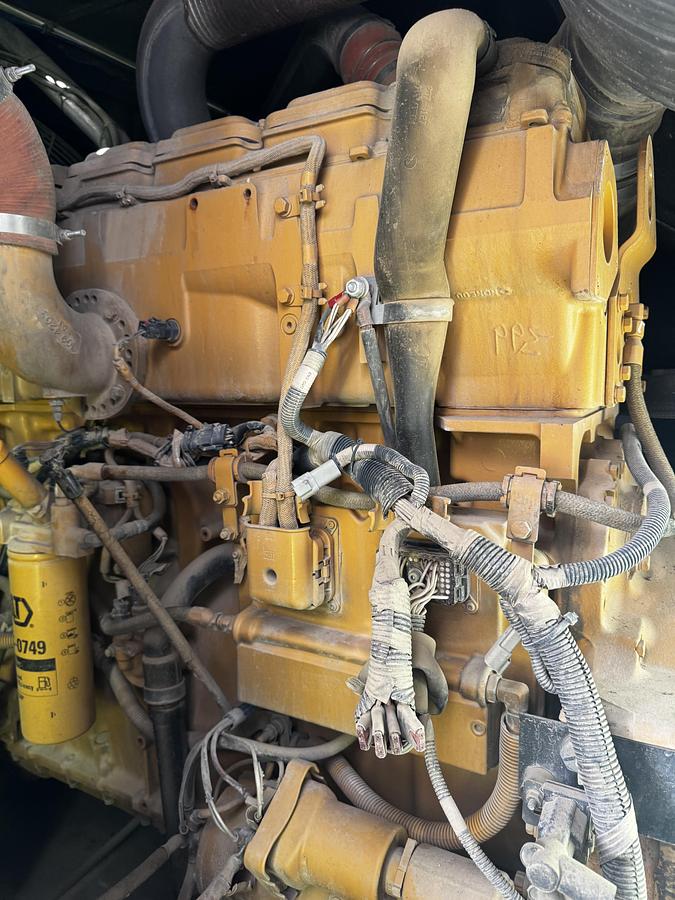

The Sullair 900XHH/1150XH (often referenced alongside XHH configurations) is a high-pressure, portable rotary screw air compressor powered by a Caterpillar C15 diesel engine.

Key Specifications

• Air Output/Capacity:1,150 cfm at 350 psig (24 bar)
• 900 cfm at 500 psig (34.5 bar)

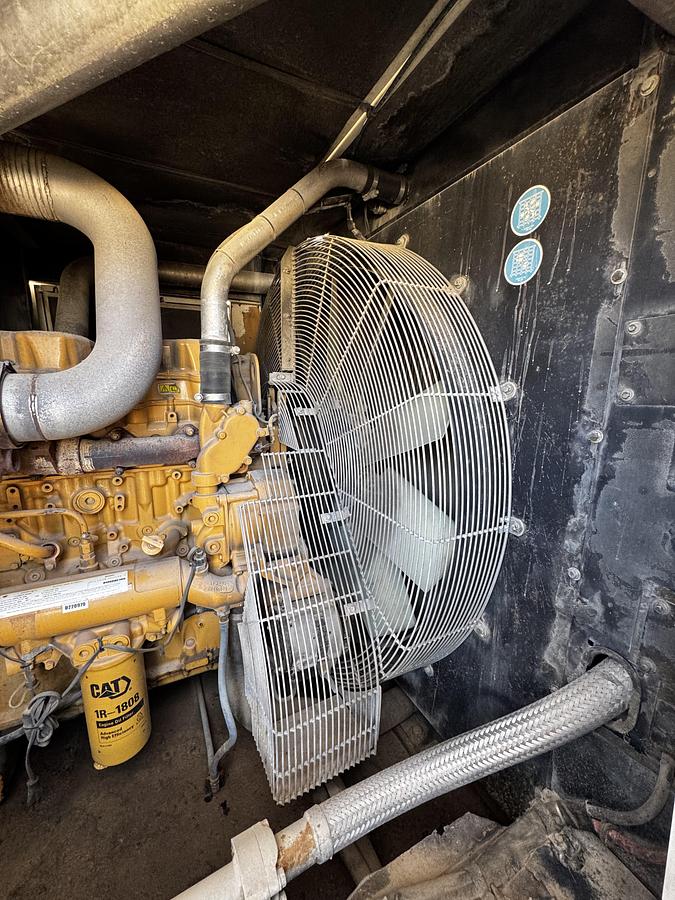

• Engine Power: 746 hp (556 kW) Caterpillar diesel
• Operating Speed: 1,800 RPM
• Fuel Capacity: Approx. 249 gallons [1]

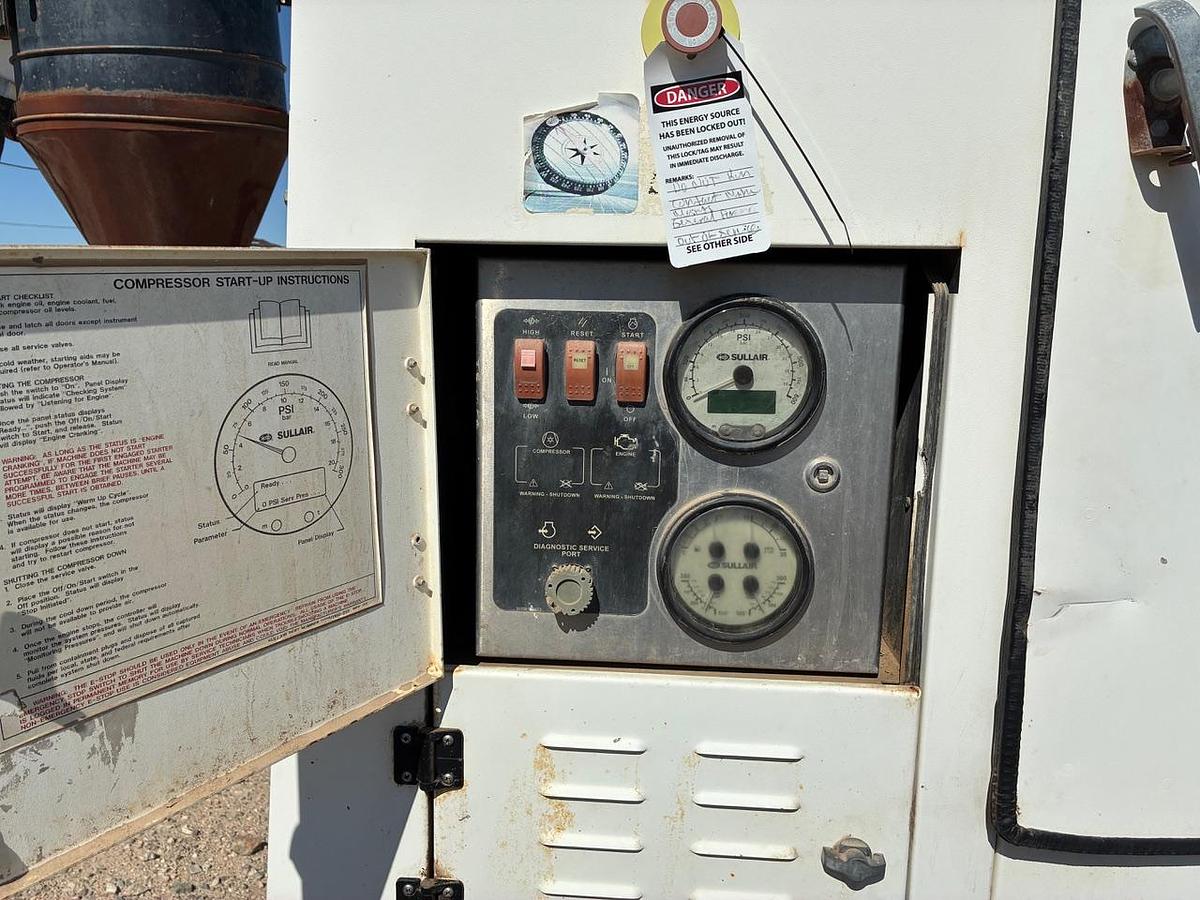

• Control System: Electronic engine control with 0 to 100% capacity control and a Sullair controller interface
• Manufactured April 2011

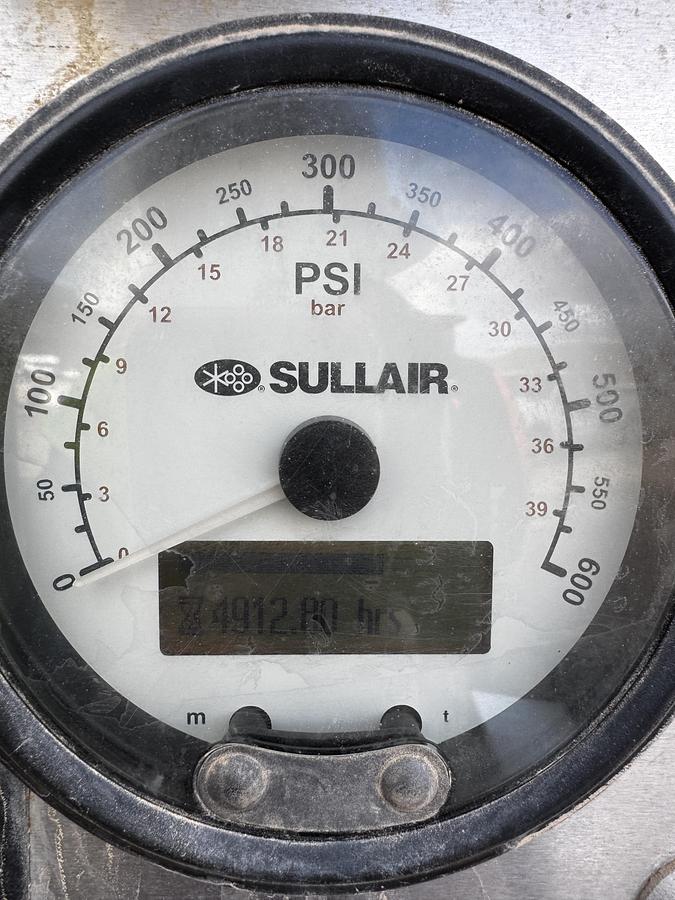

• Hours shown (not verified) 4912
