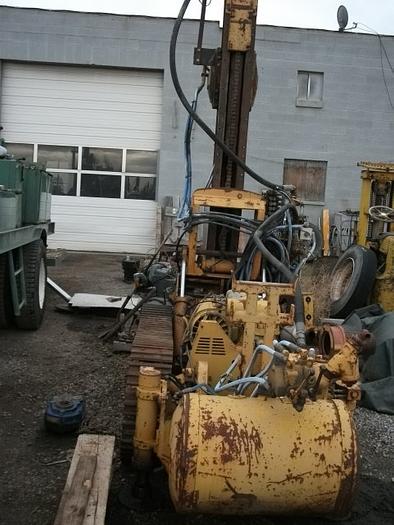

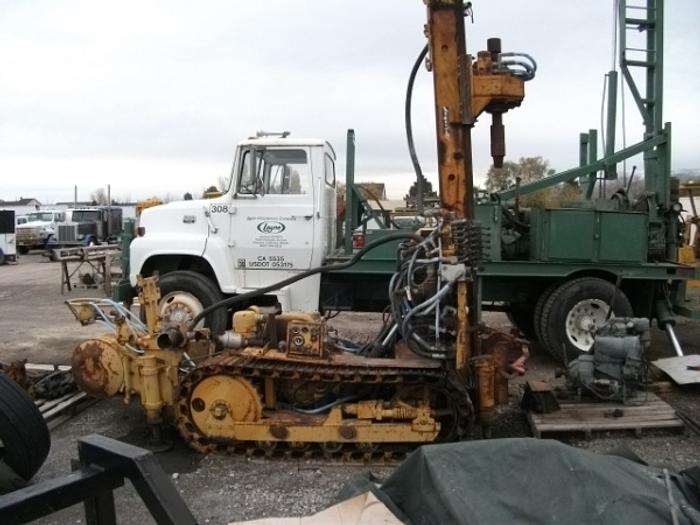

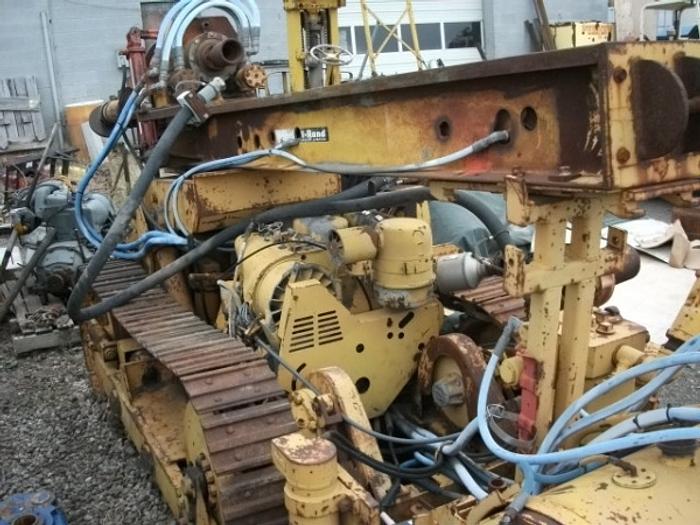

Ingersol Rand Longhole Drill

$24,000 (USD)

West Valley City, UT

orCall 801-973-0306

Description

Ingersoll Rand CMM (Built in Canada)
Net weight (less drill rods) 9,600 Lbs, 4,355 Kg.
Height, (tower vertical) 11 Ft, 4 In, 3.45 Meters/Mast laying down 6 Ft, 2 In, 1.88 Meters
Overall width, 4 ft, 7 In, 1.40 meters
Drill spindle 3 1/2 API, with smaller API sub attached - Normal drill rod size's, 3 In to 4 1/2
Normal bit size's, 4 to 6 3/4 Inch diameter, (Button DHD)
Drill rod length, 5 foot
Hydraulic pipe wrench for break out
Rotary head torque 2000 Foot Lbs with floating spindle
Feed system pull capacity, 10,000 Lbs
Tower angle tilt plus or minus 15 degrees
2 hydraulic motors, rotary head
All controls grouped together
Air and water swivel, with flow control at console. Inline air lubricator
3 Cylinder Deutz Diesel on board to move and position drill

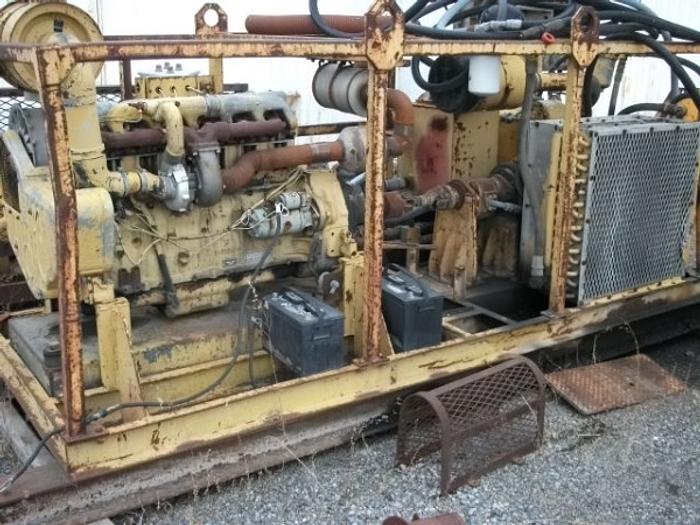

6 Cylinder Deutz Diesel power pack to run drilling operation in skid mounted module, with hydraulic pump, cooler, air compressor
Connected by hydraulic hose's with quick disconnect fittings

Specifications

Year2000
ConditionUsed
